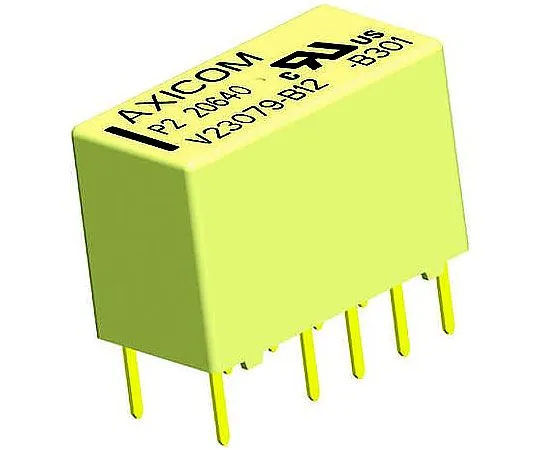

63-4638-50 Latching Relay DPDT5V dc V23079-B1201-B301
model:
63-4638-50
brand:
TE Connectivity
Product Description
Product Model: 63-4638-50Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4638-50
Product Brand: TE Connectivity
Features
- UL
- Miniature Relay P2 V23079 Series
- TE Connectivity's P2 V23079 Series Standard Communication Relay has high sensitivity and low power consumption.
- The thin, low-profile P2 V23079 series signal relay is ideal when space saving is a top concern.
- Features and Benefits: 2 Polarized Communication and Signal Relay Branch Contact, Gold Plating Immersion Washable, RTIII, IP67 V-0 Flame Retardant Grade Insulation Resistance @ 500 V dc > gt; 109 Ω surge voltage meets Telcordia TR-NWT-001089 (2/10 μs) and IEC 60950 (10/700 μs), 2000 V between open contacts, 2500 V between coils and contacts
- Application: Communication equipment (Ring and test access, PABX/VOIP) Ho***hold appliances (set-top box/HiFi) Office equipment Control equipment Medical equipment On-board equipment
Spec
- Number of pieces: 1
- Coil voltage: 5V dc
- Contact configuration: DPDT
- Switching current: 5 A
- Maximum switching voltage AC: 250 V ac
- Maximum switching voltage DC: 220 V dc
- Maximum switching power DC: 60 W
- Length: 14.5 mm
- Depth: 7.2 mm
- Height: 9.8 mm
- Dimensions: 14.5 x 9.8 x 7.2 mm
- Terminal type: through hole
- Application Type: Signal
- Operating temperature mAx: + 85 C
- RoHS compliance status: Compliance
- Securities Code: 515 -587
