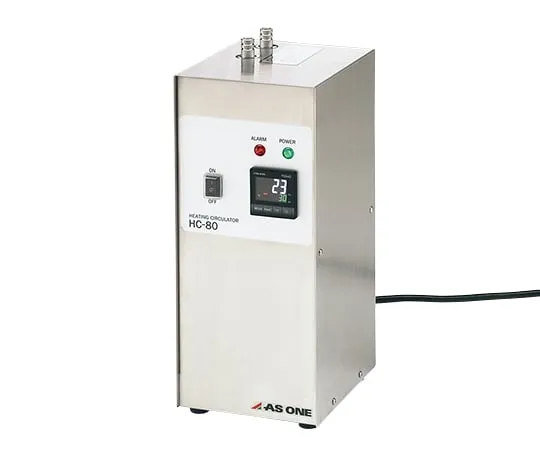

1-5807-11 Constant Temperature Water Circulator Heating Device HC-80
Product Description
Product Model: 1-5807-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-5807-11
Product Brand: AS ONE Corporation
Features
- The pipe heater and circulation pump allow efficient heating and stirring.
- The power of the heater/pump is turned off by the detection of the water interruption of the circulating water, and the alarm lamp is lit.
Spec
- Model number: HC-80
- Size (mm): 150 x 185 x 373
- main body material: stainless steel (SUS304)
- temperature settings range: R.T. + 10 to 80 ° C
- Temperature adjustment accuracy: ± 2 ° C (Performance of a single controller)
- Temperature control method: PID control
- Temperature display: LCD digital display
- Heater capacity: 900 W
- Safety device: Circulating water discharge detection and alarm lamp display (ON) (Heater pumps power supply OFF)
- pumps: Magnet pumps (Pump priming needs), maximum pumping volume 2.1 to 2.7 m, circulating water volume 5.5 / 6.0 L/min, viscosity range: 30 mPa*s or less
- power supply: AC100V 50 / 60Hz 15 A
- Weight is about 4.5 kg
- * The hose is not included. inner diameter φ 12 mm hoses are available
- * Not available for pure water.
