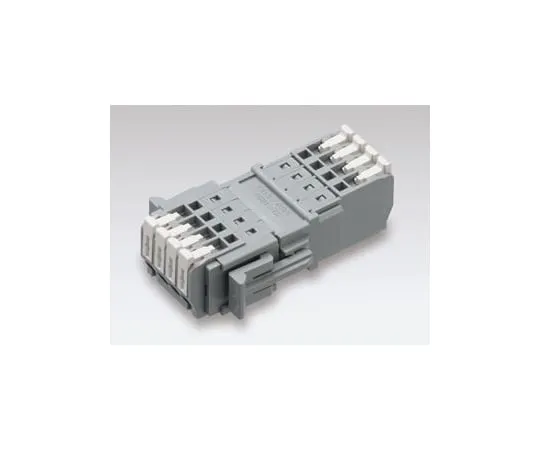

63-3033-65 Screwless Terminal Block Plug - Receptacle set DC 300 V -5 A2 pole SL-4000-AS-2PGY
Electronic/Electrical Parts and Controll Equipments

63-3033-65 Screwless Terminal Block Plug - Receptacle set DC 300 V -5 A2 pole SL-4000-AS-2PGY

model: 63-3033-65
brand: SATO PARTS CO., LTD.

Product Description

Product Model: 63-3033-65Product Brand: SATO PARTS CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3033-65
Product Brand: SATO PARTS CO., LTD.

Features

  • A screwless terminal block that can be connected simply by inserting wires. It is called a two-piece structure and can be divided into plug and receptacle like a connector.
  • Press and hold the button to reseat the wires. After inserting the wiring, release the button to secure it.

Spec

  • Package
  • Set of content plug receptacles
  • Number of Poles 2
  • Pitch between terminals 3.81 mm
  • Specifications 2
  • Rated DC 300 V -5 A
  • Withstand voltage: 2000 V AC (1 minute)
  • Insulation resistance DC 500 V, 100 Momega or more
  • Total contact resistance (initial value) 30 m.OMEGA. or less
  • Main insulating material
  • (Main body, buttons) Nylon 66 (UL 94 V-0)
  • Rated compliant single wire: phi 0.8 mm (AWG 20), twisted wire 0.50 mm 2 (AWG 20)
  • Usable wire range: single wire: phi 0.4 mm to phi 1.2 mm (AWG 26 to AWG 16), twisted wire: 0.2 mm 2 ~ 1.25 mm 2 (AWG 24 to AWG 16), wire diameter phi 0.18 mm or more
  • Standard stripping line length 9mm
  • Operation color
  • Recomm***ed Suitable Tool Slotted Screwdriver * Anything you can push a button into
  • Acquired standards: UL Standard (compatible with field wiring), C-UL Standard, T & # 220; V Standard (IEC 61984)
