Features

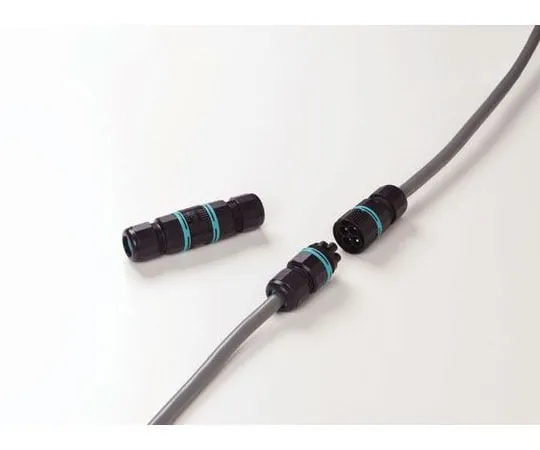

• THB387 Type Plug Waterproof Relay Connector
• < Special Feature >
• Waterproof relay connector with plug side (male) and socket side (female) set.
• The connection method is screw type and can be worked easily.
• The number of terminal poles is 4P.
• When connecting, please arrange the connector so that the primary side is female (socket side) and the secondary side is male (plug side) for safety.
• Model Details: Model Number: LD Compatible Cable Outer Diameter Terminal Strip Number: THB387-4P8523φ7~φ124P Ratings and Specifications: Rated Voltage: AC450V Rated Current: 17.5 A Compatible Wire: 0.5 sq mm ~4.0 sq mm Contact Resistance: 5 mΩ or Less: Impulse Resistant Voltage: 6 kV Insertion and Removal: 1000 Times Composition: Number of Reference Numbers Material Color/Surface Treatment: 1 Plug 1 PA66GF (UL94V0)/TPE Black/Green: 2 Socket 1 PA66GF (UL94V0)/TPE Black/Green: 3 Cable Ground 2PBT (UL94V0) Black: 4 Bushings 2TPE Green: Terminal 8 Brass Nickel Plating: Terminal Screw 8 Iron (M3 Negative) Galvanizing
