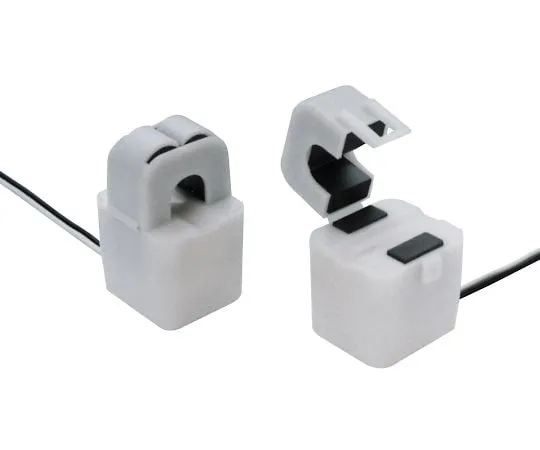

4-337-01 Micro Clamped AC Current Sensor (φ10/80 Arms) CTL-10-CLS
Product Description
Product Model: 4-337-01Product Brand: u-rd Features It […]
Contact Us
Product Details
Product Model: 4-337-01
Product Brand: u-rd
Features
- It is a nylon spring one-touch clamp type that can be easily attached to existing equipment such as a distribution board.
- Built-in overvoltage clamp element.
- The 5A output CT for power measurement can also be applied for secondary current measurement.
- It is ultra-small but can handle currents up to 80 A.
- Good output linearity even in the small current range of 10 mA to 1 A.
Spec
- Weight (g): 45
- Applicable current: 0.01 to 80 Arms (50/60Hz), RL ≦ 10Ω
- Maximum allowable current: 120 Arms continuous
- Secondary turns (n): 3000 ± 2 turns (7.5 Vp with clamp element)
- Voltage: AC 1000 V/1 minute (Core to output lead wire)
- Insulation resistance : DC 500 V/100 MΩ or more (Core to output lead wire)
- Size: 26 x 38.5 x 23 mm (excluding projections)
