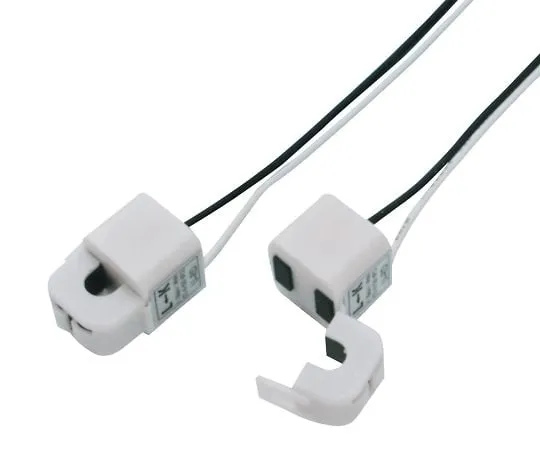

4-336-01 Ultra Small Clamped AC Current Sensor (φ6/15 Arms) CTL-6-S32-8F-CL
Product Description
Product Model: 4-336-01Product Brand: u-rd Features It […]
Contact Us
Product Details
Product Model: 4-336-01
Product Brand: u-rd
Features
- It is a nylon spring one-touch clamp type that can be easily attached to existing equipment such as a distribution board.
- High power of 1V without amplifier.
- Although extremely small, it supports currents up to 15 A.
- Good output linearity even in the small current range of 10 mA to 1 A.
Spec
- Weight (g): about 12
- Applicable current: 0.01 to 15 Arms (50/60Hz), RL ≦ 10Ω
- Maximum allowable current: 50 Arms continuous
- Secondary turns (n): 800 ± 2 turns
- Withstands voltage: 1000 VAC for 1 minute (through hole to output lead wire)
- Insulation resistance : DC 500 V/100 MΩ or more (through hole to output lead wire)
- Size: 18 x 25 x 18 mm (excluding projections)
