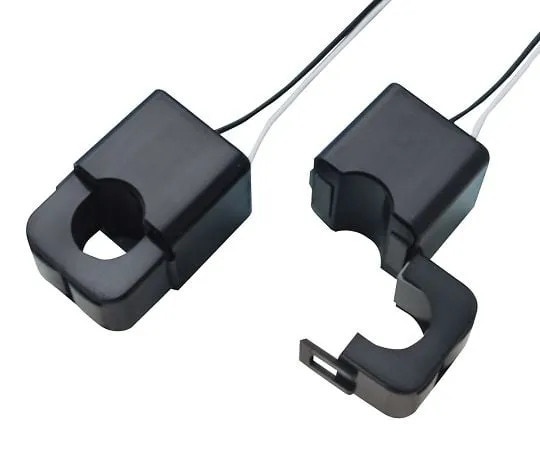

4-335-01 Small Clamp AC Current Sensor (φ16/120 Arms) CTL-16-CLS
Product Description
Product Model: 4-335-01Product Brand: u-rd Features A n […]
Contact Us
Product Details
Product Model: 4-335-01
Product Brand: u-rd
Features
- A nylon spring one-touch clamp type that is easy to attach to existing equipment such as a distribution panel.
- Direct interfacing is possible to systems such as various energy-saving devices and overload prevention devices.
- Built-in overvoltage clamp element.
- The 5A output CT for power measurement can also be ***d for secondary current measurement.
- Good output linearity even in the small current range of 10 mA to 1 A.
Spec
- Weight (g): 70
- Applicable current: 0.01 to 120 Arms (50/60Hz), RL ≦ 10Ω
- Maximum allowable current: 300 Arms continuous
- Secondary turns (n): 3000 ± 2 turns (7.5 Vp with clamp element)
- Withstands voltage: 1000 VAC for 1 minute (through hole to output lead wire)
- Insulation resistance : DC 500 V , 100 MΩ or more (through hole to output lead wire)
- Size: 29 x 44.5 x 31 mm (excluding projections)
