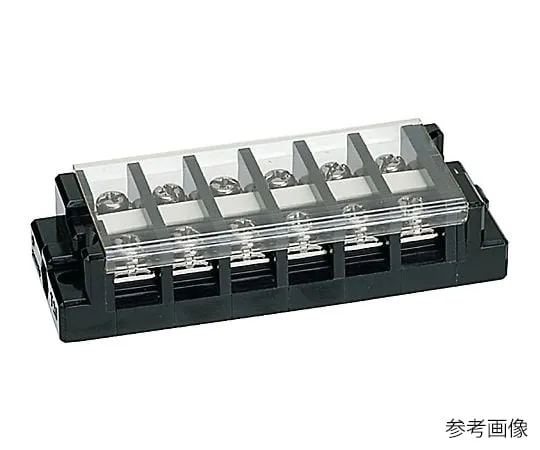

4-333-01 Terminal Block T20C02
Product Description
Product Model: 4-333-01Product Brand: KASUGA ELECTRIC W […]
Contact Us
Product Details
Product Model: 4-333-01
Product Brand: KASUGA ELECTRIC WORKS LTD.
Features
- This terminal block is pre-assembled to the required number of poles.
- Terminal cover included.
Spec
- Width x Depth x Height (mm): 47 x 37 x 22
- Number of Poles: 2
- Insulation voltage: 250V
- fitted wire and maximum current : 1.25 mm2 -15 A , 2 mm2 -20 A , * 3.5 mm2 -30 A , 5.5 mm2 -40 A (* The crimp terminal is outside of JIS standards .)
- Terminal screw: M4 x 10 ± Self-Up
- Suitable crimping terminals: 1.25 -4, 2 -4, 3.5 -4 S, 5.5 -4 S
- Tightening torque: 1.4 to 1 8N*m
- Non-burnable grade: UL 94 HB
