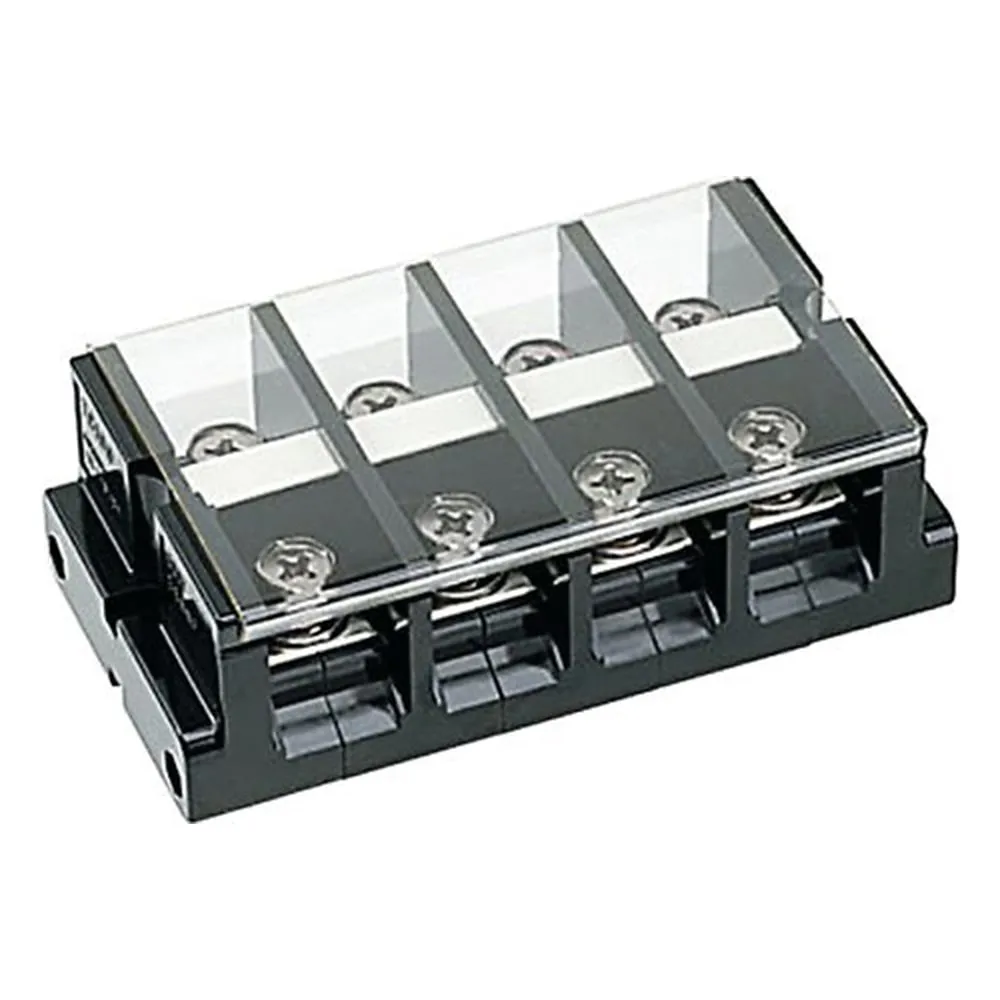

4-330-01 Terminal Block TC 100 C 02
Product Description
Product Model: 4-330-01Product Brand: KASUGA ELECTRIC W […]
Contact Us
Product Details
Product Model: 4-330-01
Product Brand: KASUGA ELECTRIC WORKS LTD.
Features
- This terminal block is pre-assembled to the required number of poles.
- Terminal cover included.
Spec
- Width x Depth x Height (mm): 78 x 67 x 45.5
- Number of Poles: 2
- Insulation voltage: 600 V
- fitted wire and maximum current : 22 mm2 -90 A (30 mm2 -110 A) , 38 mm2 -130 A (50 mm -130 A)
- Terminal screw: M8 x 14 (+) hexagon head bolt
- Suitable crimping terminals: 22 -8, 38 -8
- Tightening torque: 8 to 10 N*m
- Non-burnable grade: UL 94 HB
