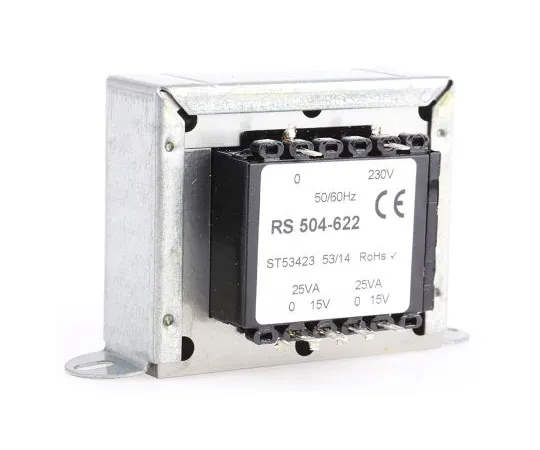

63-4636-70 RS PRO 50VA 2 Output Chassis Mounting Transformer, 15V ac 504-622
Product Description
Product Model: 63-4636-70Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4636-70
Product Brand: RS PRO
Features
- Chassis mounted, clamp structure, 230 Vac, 6 VA→50 VA
- Substrate mounted low voltage main transformer, 1 230 Vac, 50/60 Hz primary winding.
- Each of the two secondary windings can be connected in series or in parallel to obtain various output voltages and currents.
- Double Section Bobbin Structure Fully Coated Bobbin Fully Varnished Coated 2 Holes Fixed Wrap Over Clamp Solder Tag Terminated with optional Coating (e.g. < 503-912') 503-912 100% Electrical Performance Test/Flash Tested BS3535 and EN 60 742 Verified
Spec
- Primary Voltage Rating:230V ac
- Secondary Voltage Rating:15V ac
- Power Rating:50VA
- Number of Outputs:2
- Mounting Type:Chassis
- Length:79mm
- Width:62mm
- Depth:65mm
- Dimensions:79 x 62 x 65mm
- Fixing Hole Diameter:4.7 x 9.5mm
- Weight:1kg
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:504-622
