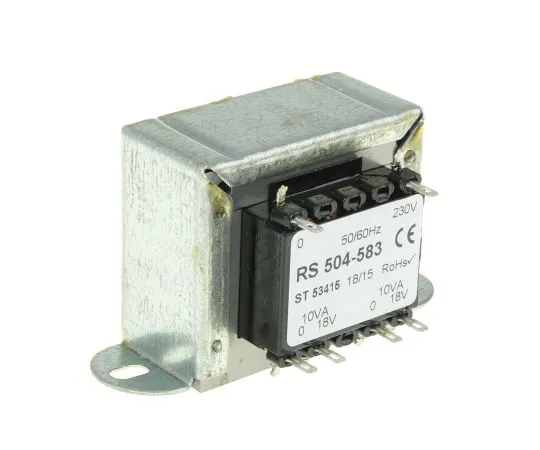

63-4636-69 RS PRO 20VA 2 Output Chassis Mounting Transformer, 18V ac 504-583
Product Description
Product Model: 63-4636-69Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4636-69
Product Brand: RS PRO
Features
- Chassis mounted, clamp structure, 230 Vac, 6 VA→50 VA
- Substrate mounted low voltage main transformer, 1 230 Vac, 50/60 Hz primary winding.
- Each of the two secondary windings can be connected in series or in parallel to obtain various output voltages and currents.
- Double Section Bobbin Structure Fully Coated Bobbin Fully Varnished Coated 2 Holes Fixed Wrap Over Clamp Solder Tag Terminated with optional Coating (e.g. < 503-912') 503-912 100% Electrical Performance Test/Flash Tested BS3535 and EN 60 742 Verified
Spec
- Primary Voltage Rating:230V ac
- Secondary Voltage Rating:18V ac
- Power Rating:20VA
- Number of Outputs:2
- Mounting Type:Clamp Mount
- Length:59mm
- Width:57mm
- Depth:50mm
- Dimensions:59 x 57 x 50mm
- Fixing Hole Diameter:4.7 x 8.7mm
- Weight:550g
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:504-583
