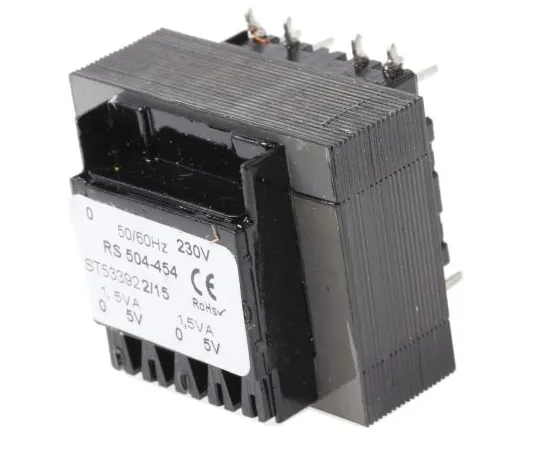

63-4636-65 5V ac 2 Output Through Hole PCB Transformer, 3VA 504-454
Product Description
Product Model: 63-4636-65Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4636-65
Product Brand: RS PRO
Features
- Primary Side 230 Vac Transformer
- Spare Pin for Fully Coated Bobbin Board Mounting 100% Electrical Performance/Flash Tested BS3535 and EN 60 742 Verified
Spec
- Secondary Voltage Rating:5V ac
- Power Rating:3VA
- Primary Voltage Rating:230V ac
- Number of Outputs:2
- Length:38mm
- Width:35mm
- Depth:30mm
- Dimensions:38 x 35 x 30mm
- Weight:140g
- Mounting Type:Through Hole
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:504-454
