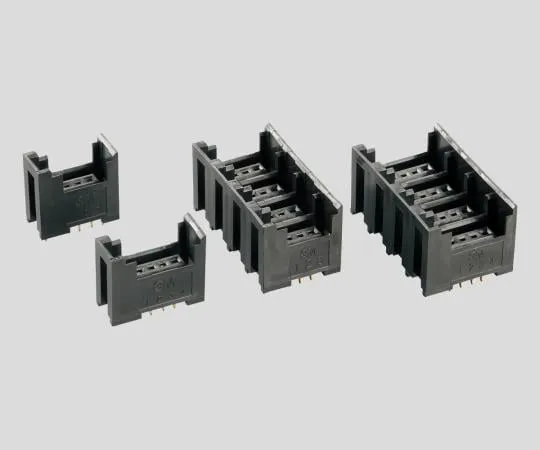

2-9686-01 Socket 37203-62A3-003PL
Product Description
Product Model: 2-9686-01Product Brand: 3M Company Spec […]
Contact Us
Product Details
Product Model: 2-9686-01
Product Brand: 3M Company
Spec
- Material: Body/66 nylon, Contact/copper alloy
- Applicable product: Connector/mini, clamp (wire mounting plug: 2-9682-01 - 08, 2-9683-01 - 08)
- Board: Hole diameter/φ1.0mm, Substrate thickness/1.0 - 1.6mm
- Rating voltage: AC/DC32V or less
- Rated current: Maximum 3.0A
- Operating temperature range (no condensation, no water droplet): 1A energization/-20 to 85℃, 2A energization/-20 to 75℃, 3A energization/- 20 to 60℃
- Number of poles: 3 pole x 1 column
- Straight type
- Model number: 37203-62A3-003PL
