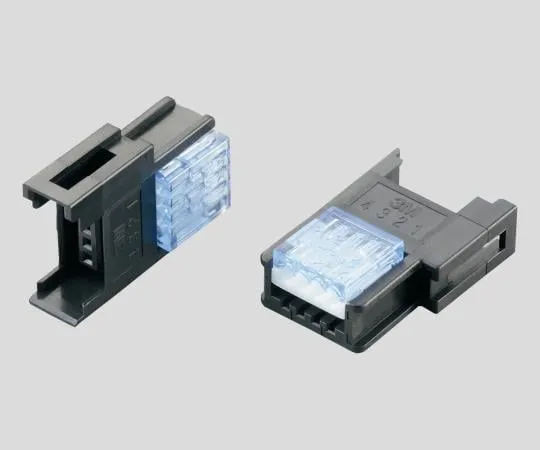

2-9684-05 Socket 373033122000FL Yellow 37303-3122-000FL
Product Description
Product Model: 2-9684-05Product Brand: 3M Company Spec […]
Contact Us
Product Details
Product Model: 2-9684-05
Product Brand: 3M Company
Spec
- Material: Body/PBT (Polybutylene terephthalate), Base cover/66 nylon, Top cover/PC (polycarbonate), Contact/copper alloy
- Rating voltage: AC/DC32V or less
- Rated current: Maximum 3.0A
- Operating temperature range (no condensation, no water droplet): 1A energization/-20 to 85℃, 2A energization/-20 to 75℃, 3A energization/- 20 to 60℃
- Applicable product: Connector/mini, clamp (board mounting plug: 2-9682-01 - 08, 2-9683-01 - 08)
- Cover color: Yellow
- Applicable wire (AWG No.): 24 - 26
- Finished outer diameter (φmm): 1.0 - 1.2
- 3 pole
- For cable repeater connections
- Model number: 37303-3122-000FL
