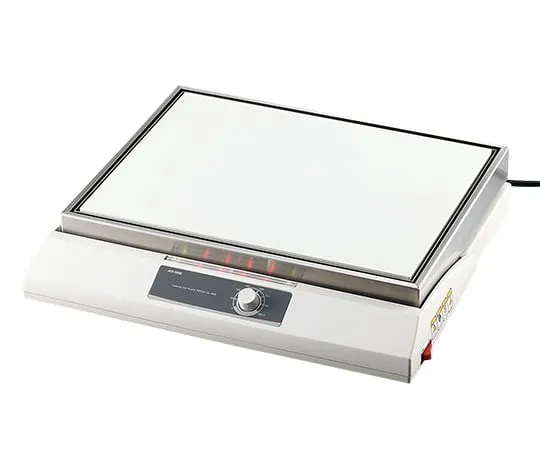

1-4600-41 Hot Plate (NINOS) 300℃ 400 x 300mm NA-3LA
Product Description
Product Model: 1-4600-41Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-4600-41
Product Brand: AS ONE Corporation
Features
- Suitable for large samples with stable temperature control.
- A microcomputer type proportional control system enables stable temperature control.
- A safety lamp is provided between the front operation section and the hot plate section (the lamp remains on until the temperature of the top plate falls below 55°C).
- The top plate is aluminum with ceramic coating, so it has excellent chemical resistance.
- It will rise to the maximum temperature in about 30 minutes.
- Since the plate size is 400 x 300 mm, it is possible to test large samples or large numbers of samples.
- Top plate temperature distribution width is 4°C (200°C setting) with high accuracy.
Spec
- Model number: NA-3LA
- Highest temperature (℃): 300
- Plate size (mm): 400 x 300
- Temperature settings range: Room temperature +10 - 300℃
- Temperature settings: Analog scale method (scale width 50℃)
- Temperature distribution width: 4℃ (*temperature distribution width is indoor environment 25℃ (no wind, no load, using internal sensor), Reference value when setting to 200℃. )
- Temperature control system: Microcomputer type proportional control system
- Temperature display system: ?
- Internal temperature sensor: K class thermocouple
- Safety device: Abnormal heating prevention device (thermostat), overcurrent
- Heater capacity: 1430W
- Additional function: ?
- Plate material: Aluminum (ceramic coating)
- Size: 470 x 410 x 101mm
- Power supply: 100VAC 50/60Hz
- Power cord length: Approx 2m
- *NA-3HA, NA?3HA is 100V/20A specification. Plug shape is different. Please be careful during installation.
- RoHS3 (EU)2015/863 Certificates can be issued
