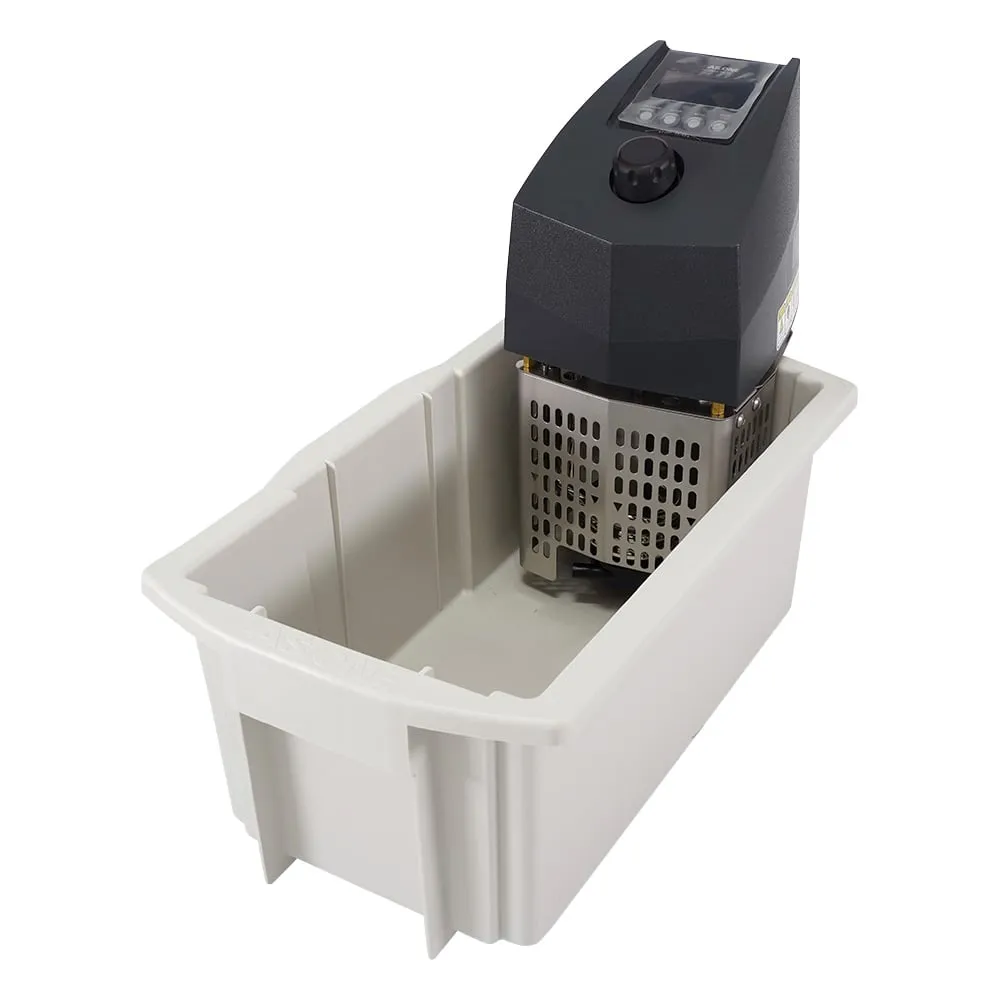

1-4594-33 Thermax Water Bath TM-3A
Product Description
Product Model: 1-4594-33Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-4594-33
Product Brand: AS ONE Corporation
Features
- Full of ***ful functions for a compact body.
- A sophisticated temperature control algorithm and a low error platinum temperature sensor can be ***d for highly accurate temperature control.
- Easy-to-*** jog dial input method is adopted for temperature setting and timer setting, enabling quick and reliable setting.
- High precision temperature control is possible by adopting microcomputer type PID control.
- A notification buzzer is installed when the set temperature and time are reached.
- Double lock mechanism consisting of two indep***ent circuits is adopted.
- Four timer states (ON, OFF, ON/OFF, SV) are provided as standard.
- Beautiful and easy to read display screen. Uses a negative backlight LCD with good visibility.
- Key lock settings, accumulated operating time, timer, and remaining program time can also be displayed.
- Data storage and communication functions are provided as standard, enabling real-time monitoring on personal computers and data management in tables and graphs.
- It is also possible to set the temperature below room temperature by using an external circulation nozzle and a cooling coil.
Spec
- Model number: TM-3A
- Body dimensions (mm): 147 x 150 x 295
- Effective inner dimension (mm): 183 x 241 x 153
- Type: Water bath
- Performance:
- Temperature adjustment range: Room temperature +5 - 80℃
- Temperature control accuracy: +/- 1.0℃ (our test values)
- Temperature settings range: -20.0℃ to +80.0℃ (cooling function is not available in this machine. Use the external cooling unit (optional). )
- Function: Program (maximum 8 steps), float type no-water burning prevention, buzzer alarm, Variable type temperature excessive rise prevention device, Data storage/communication (USB, optional), alarm signal output, external sensor (optional) supported
- Configuration:
- Sensor: Pt100Ω
- Heater capacity: 1kW
- Standards:
- Stirring mechanism: Jet stirring method
- Pump capacity: Maximum discharge quantity/10L/min, Maximum pump head/1.4m
- Timer setting range: 1 minute - 99 hours 59 minutes (1 minute unit)
- Clamp attachable width: 40mm
- Power supply: 100VAC 50/60Hz
- Accessories: Water tank (heat resistant ABS resin), software (CD-ROM)
- *Cooling function is not available in this machine. Use the external cooling unit (optional).
- *Demonstration equipment -33 is available.
- RoHS3 (EU)2015/863 Certificates can be issued
