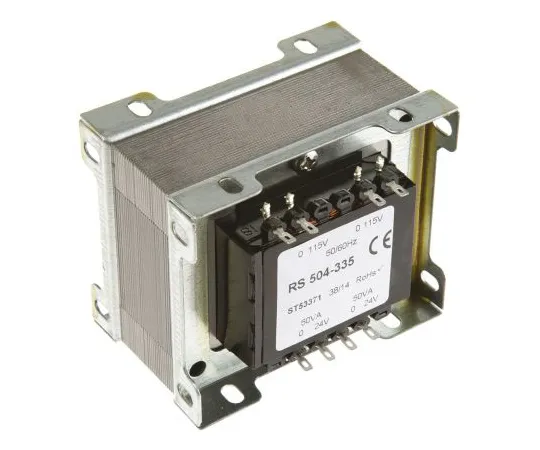

63-4636-51 RS PRO 100VA 2 Output Chassis Mounting Transformer, 24V ac 504-335
Product Description
Product Model: 63-4636-51Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4636-51
Product Brand: RS PRO
Features
- Optimum transformer coating: 6 VA = < 503-912') 503-912/, 12 and 20 VA = < 504-004') 504-004/, 50, 75 and 100 VA = < 503-928') 503-928/
- Chassis mounting clamp/frame structure Primary side 115/230 Vac transformer
- Double section bobbin structure Fully covered bobbin Varnished throughout 2 holes Fixed lap over clamp, 6 VA→50 VA Multi-hole frame fixed 100 VA Solder tag End coating with optional termination 100% Electrical performance test/flash tested BS3535 and EN 60 742 verified
Spec
- Primary Voltage Rating:115V ac, 230V ac
- Secondary Voltage Rating:24V ac
- Power Rating:100VA
- Number of Outputs:2
- Mounting Type:Chassis
- Length:89mm
- Width:68mm
- Depth:75mm
- Dimensions:89 x 68 x 75mm
- Fixing Hole Diameter:7.9 x 4.8mm
- Weight:1.6kg
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:504-335
