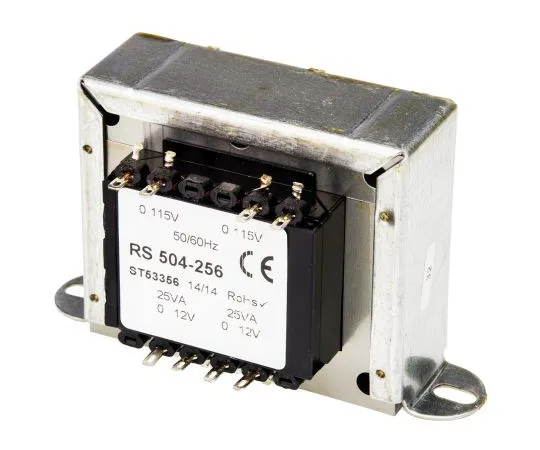

63-4636-42 RS PRO 50VA 2 Output Chassis Mounting Transformer, 12V ac 504-256
Product Description
Product Model: 63-4636-42Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4636-42
Product Brand: RS PRO
Features
- Optimum transformer coating: 6 VA = < 503-912') 503-912/, 12 and 20 VA = < 504-004') 504-004/, 50, 75 and 100 VA = < 503-928') 503-928/
- Chassis mounting clamp/frame structure Primary side 115/230 Vac transformer
- Double section bobbin structure Fully covered bobbin Varnished throughout 2 holes Fixed lap over clamp, 6 VA→50 VA Multi-hole frame fixed 100 VA Solder tag End coating with optional termination 100% Electrical performance test/flash tested BS3535 and EN 60 742 verified
Spec
- Primary Voltage Rating:115V ac
- Secondary Voltage Rating:12V ac
- Power Rating:50VA
- Number of Outputs:2
- Mounting Type:Clamp Mount
- Length:79mm
- Width:62mm
- Depth:65mm
- Dimensions:79 x 62 x 65mm
- Fixing Hole Diameter:4.7 x 9.5mm
- Weight:1kg
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:504-256
