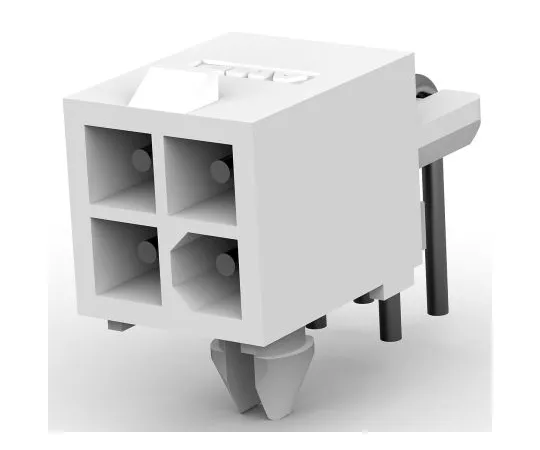

63-4636-08 Board Header 4 Pole Light Angle Wire to Board 4.14 mm Maiten Lock 1-770968-0
model:
63-4636-08
brand:
TE Connectivity
Product Description
Product Model: 63-4636-08Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4636-08
Product Brand: TE Connectivity
Features
- TE Connectivity Mini-Universal MATE-N-LOK Light Angle Board Pin Headers w/Board Lock
- Mini-Universal MATE-N-LOK Light Angle Mounting Board Pin Headers w/4.14 mm center line, tin plated or gold plated pin contacts for wire to board applications.
- These mini universal MATE-N-LOK light angle mounting board pin headers have a white UL94V-0 nylon housing with a positive locking latch mechanism for easy board retention with secure engagement and board locking.
- See Mini-Universal MATE-N-LOK Plug Housing and Mini-Universal MATE-N-LOK2 Plug Housing (both *** socket contacts) for information on engaging connectors.
Spec
- Quantity: 1 bag (5 pieces)
- Series: Mini-Universal MATE-N-LOK
- Pitch: 4.14 mm
- Number of contacts: 4
- Body orientation: right angle
- Shroud/Unshroud: Shroud
- Installation type: through hole
- Terminal Method: Solder
- Contact Plating: Tin
- Current rating: 9.5 A
- RoHS compliance status: Compliance
- Securities Code: 500 -686
