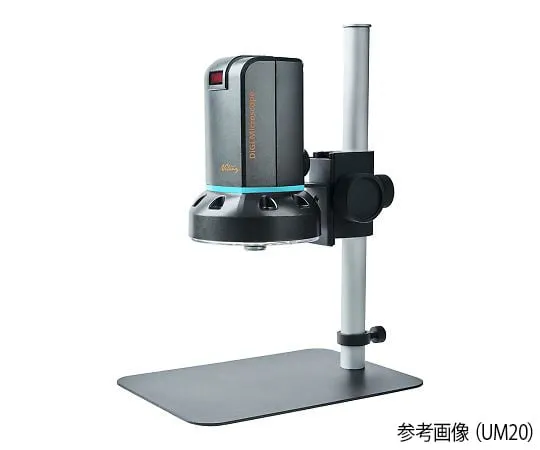

2-9560-21 Digital Microscope (long-distance shooting supported) HDMI/PC connection UM20
model:
2-9560-21
category:
dissectiontoolsandsupplies
Product Description
Product Model: 2-9560-21 Features Compatible with Windo […]
Contact Us
Product Details
Product Model: 2-9560-21
Features
- Compatible with Windows ®, Android and Mac devices.
- At a frame rate of 60 frames per second, it has more frames, so the images are r***ered more smoothly.
- 30 wide-angle LEDs are mounted on the unit to let light fall and adjust brightness.
- The tempered glass stand absorbs and reduces microvibrations when using a 10 x lens (the effect is not noticeable when using a standard 4 x lens and introduction is not recomm***ed).
Spec
- Specifications: Body (HDMI/PC connection)
- Size (mm): 106 x 106 x 152
- Camera: CMOS sensor 2 million pixels
- Frame rate: 60 fps
- Magnification: 4 x Lens (Standard): 13 ~ 140 x * 1
- Magnification: 10 x Lens (optional): 231 ~ 497 x * 1
- Distance between subject and lens: 22 ~ 214 mm
- Auxiliary light source: 30 white LEDs
- Output interface: 1080 P Full HD HDMI signal output USB 3.0 TypeC
- Operating System: Windows ® 8/10, Android, Mac
- Power supply: 100 VAC (5 VDC/2 A with AC adapter)
- Set contents: Microscope body (with 4x objective lens), set of stand, remote control, HDMI cable, USB TypeC cable, white balance adjustment pad
- *You need to download the dedicated software from the web.
- RoHS3 (EU)2015/863 Certificates can be issued
