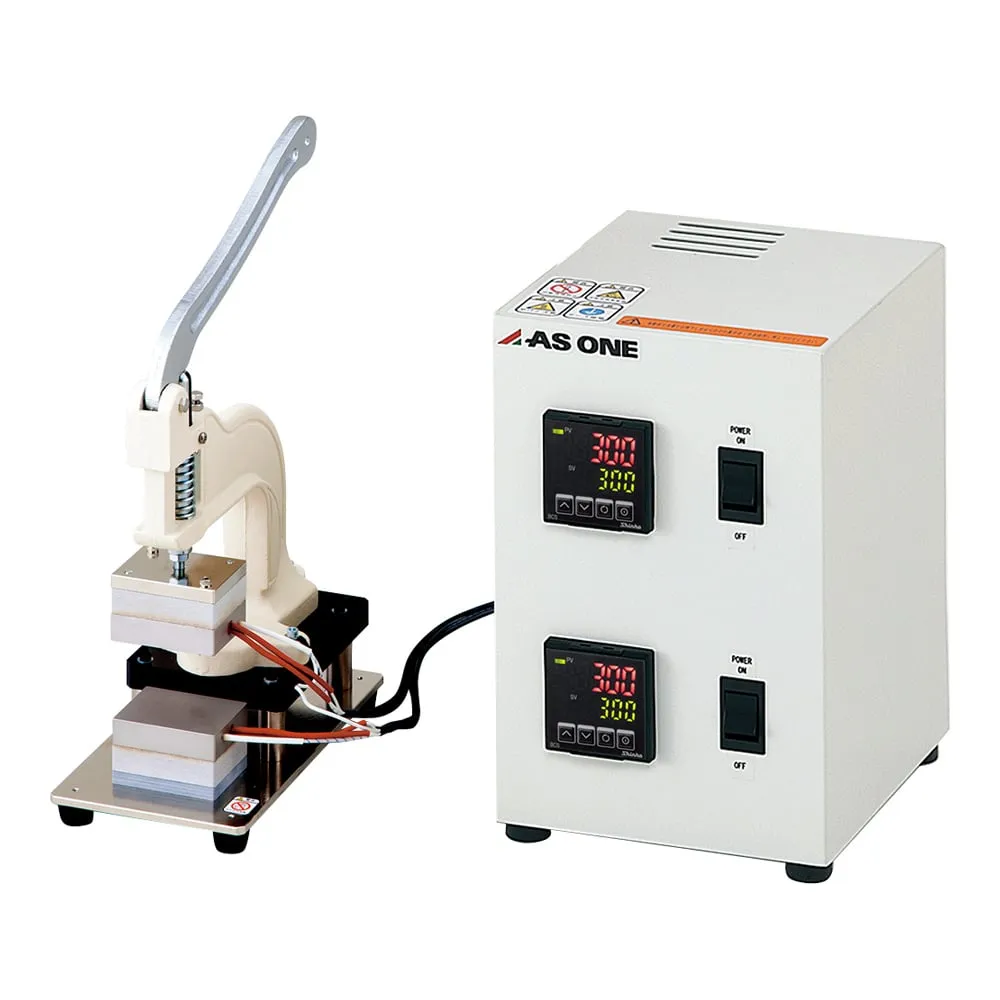

1-312-17 Hand Hot Press Digital HHP2-2D
Product Description
Product Model: 1-312-17Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 1-312-17
Product Brand: AS ONE Corporation
Features
- For thermal pressing of small samples.
- It is suitable for thermal pressing of small sample of tablet size.
- Mold (φ7~14 mm, sold separately) can be ***d.
- Can be heated individually with the upper and lower heat plates.
Spec
- Model number: HHP2-2D
- Size (mm): 150 x 280 x 465
- Weight (kg): About 14
- Up or down thermal plates Distance: 38 - 63mm (stroke: 25mm)
- Weighted: Maximum approx 40kg
- Heating temperature: R.T. +20 - 300℃
- Temperature settings: Digital
- Sensor: K class thermocouple
- Material: Press Body/cast Iron baking coating, Lever/cast iron (Chromium Plating), Temperature control/steel coating, Base/Phenol Resin, Top board/aluminum
- Heater: 160W x 2
- Power supply: 100VAC 50/60Hz
- Power cord length: 2.5m
- *Hot plate of up or down does not contact with each other.
- *Use with the optional gold type.
