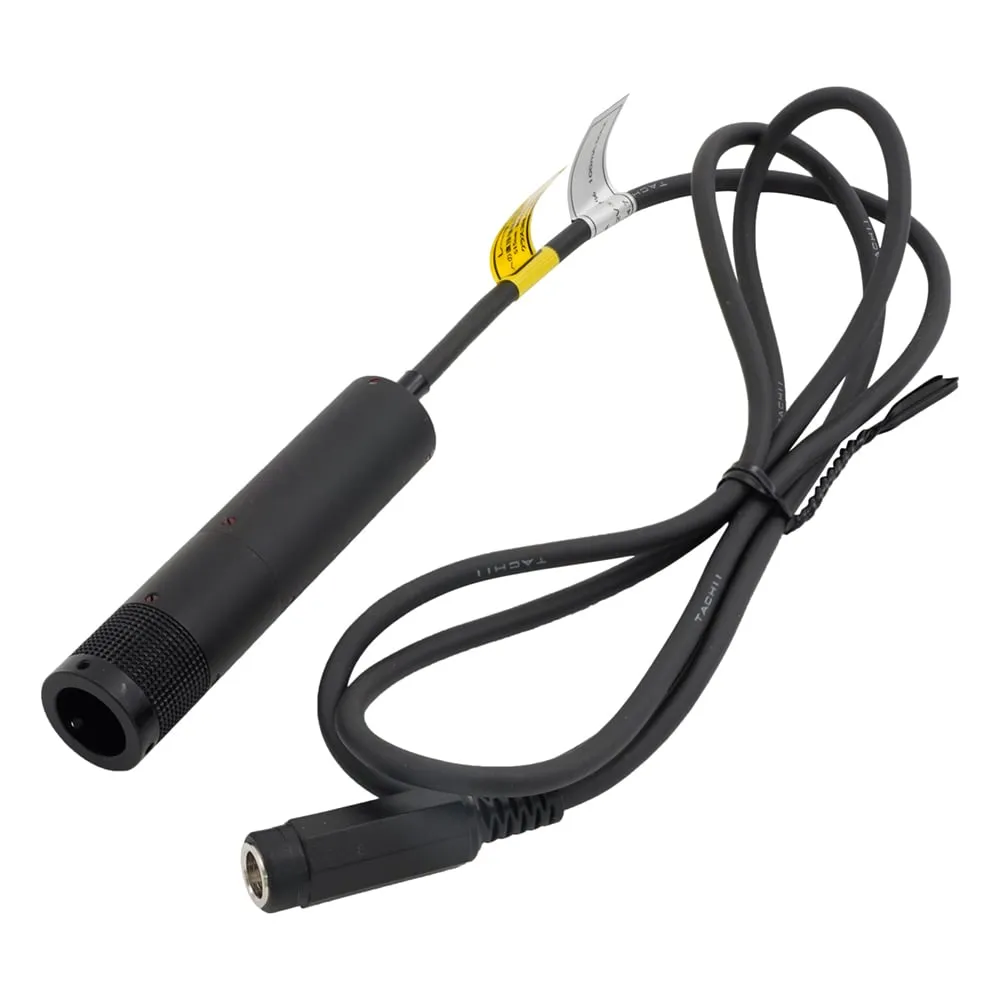

2-9332-21 Laser light source (green) DSGP-515-5-A
model:
2-9332-21
category:
dissectiontoolsandsupplies
Product Description
Product Model: 2-9332-21 Features A highly visible 515 […]
Contact Us
Product Details
Product Model: 2-9332-21
Features
- A highly visible 515 nm semiconductor laser light source.
- Beca*** it is a semiconductor green laser, it can be ***d in a wide temperature range of -10~50 degrees Celsius.
- It is compact and lightweight beca*** it has an integrated drive circuit.
Spec
- Type: DC Jack Terminal + AC Adapter
- Beam Diameter (At a distance of 1 m): Approx. Φ 1.0 mm
- Optical output: 5.0 mW maximum
- Wavelength: 515 nm
- Optical axis accuracy: 3 ° or less
- Current consumption: 150 mA or less
- Operating Temperature: -10 to + 50 ° C
- power supply Voltage : + 12 VDC , ± 10%
- Size: Φ 16 x 71.5 mm
- Weight cookies: about 50 g
