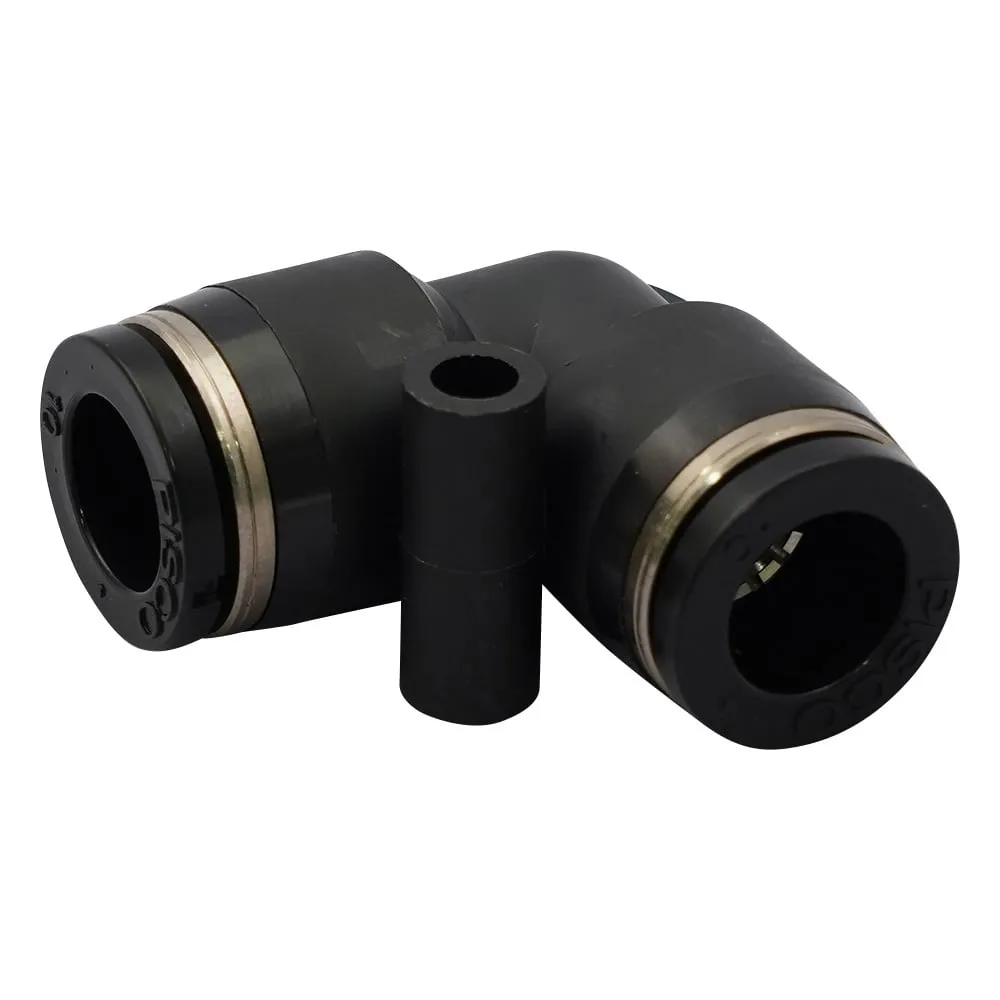

1-3403-04 PBT Tube Fitting Tube Outer Dim. φ10mm PV10
Product Description
Product Model: 1-3403-04Product Brand: NIHON PISCO CO., […]
Contact Us
Product Details
Product Model: 1-3403-04
Product Brand: NIHON PISCO CO., LTD.
Spec
- Model Number: PV 10
- Material: Main / PBT (polybutylene terephthalate), metal / brass (electroless nickel plating), O-ring / NBR (nitrile rubber), open ring / POM (polyacetal)
- Used fluid: Air and water
- Vacuum pressure: 100 kPa
- maximum working pressure: 1.0 MPa
- Temperature range: 0 to 60 ° C
- Type: Elbow
- adaptive tube outer diameter: φ 10 mm
- When using water, keep the surge pressure below maximum working pressure and *** insert ring (sold separately).
- RoHS3 (EU)2015/863 Certificates can be issued
