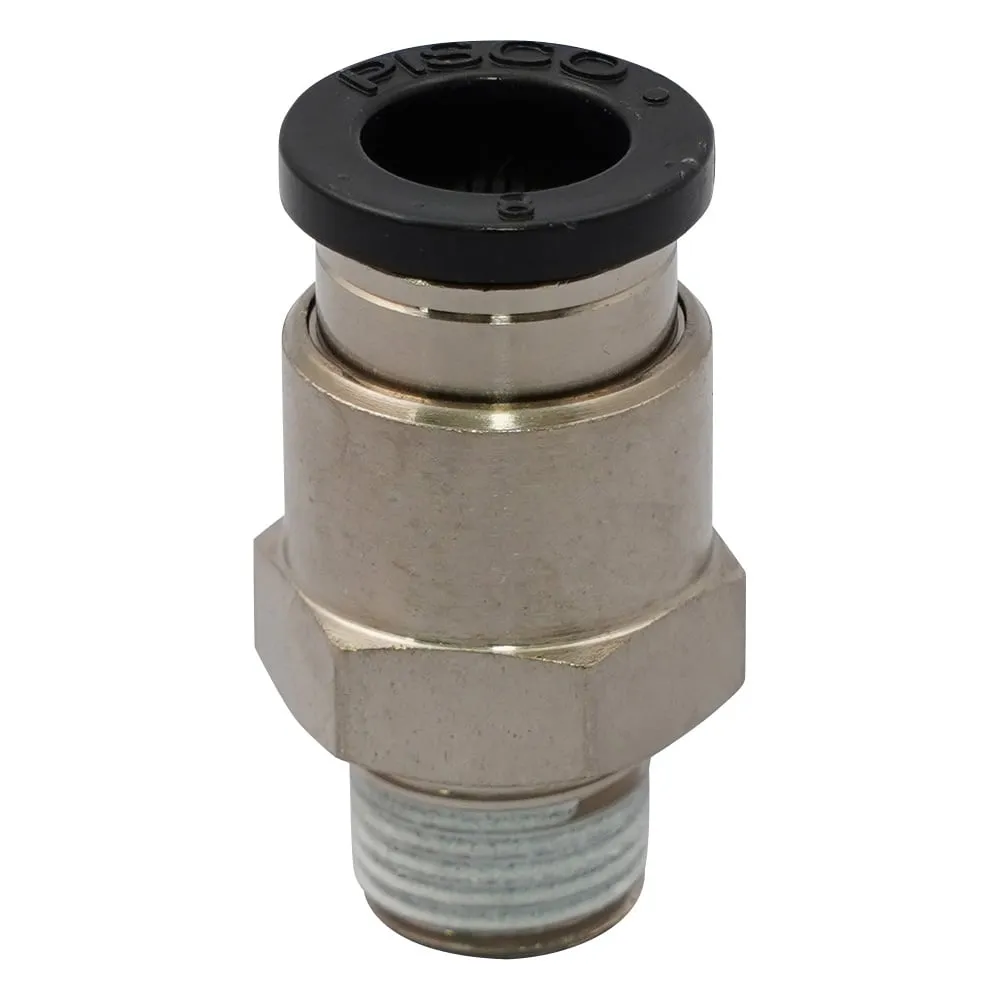

1-3400-05 PBT Tube Fitting Tube Outer Dim. φ8mm, Fit Screw:R1/8 PC8-01
Product Description
Product Model: 1-3400-05Product Brand: NIHON PISCO CO., […]
Contact Us
Product Details
Product Model: 1-3400-05
Product Brand: NIHON PISCO CO., LTD.
Spec
- Model number: PC8-01
- Material: Main / PBT (polybutylene terephthalate), metal / brass (electroless nickel plating), O-ring / NBR (nitrile rubber), open ring / POM (polyacetal)
- Used fluid: Air and water
- Vacuum pressure: 100 kPa
- maximum working pressure: 1.0 MPa
- Temperature range: 0 to 60 ° C
- Type: Straight
- adaptive tube outer diameter: φ8 mm
- Fit screw size: R 1/8
- When using water, keep the surge pressure below maximum working pressure and *** insert ring (sold separately).
- RoHS3 (EU)2015/863 Certificates can be issued
