automaticdiluter

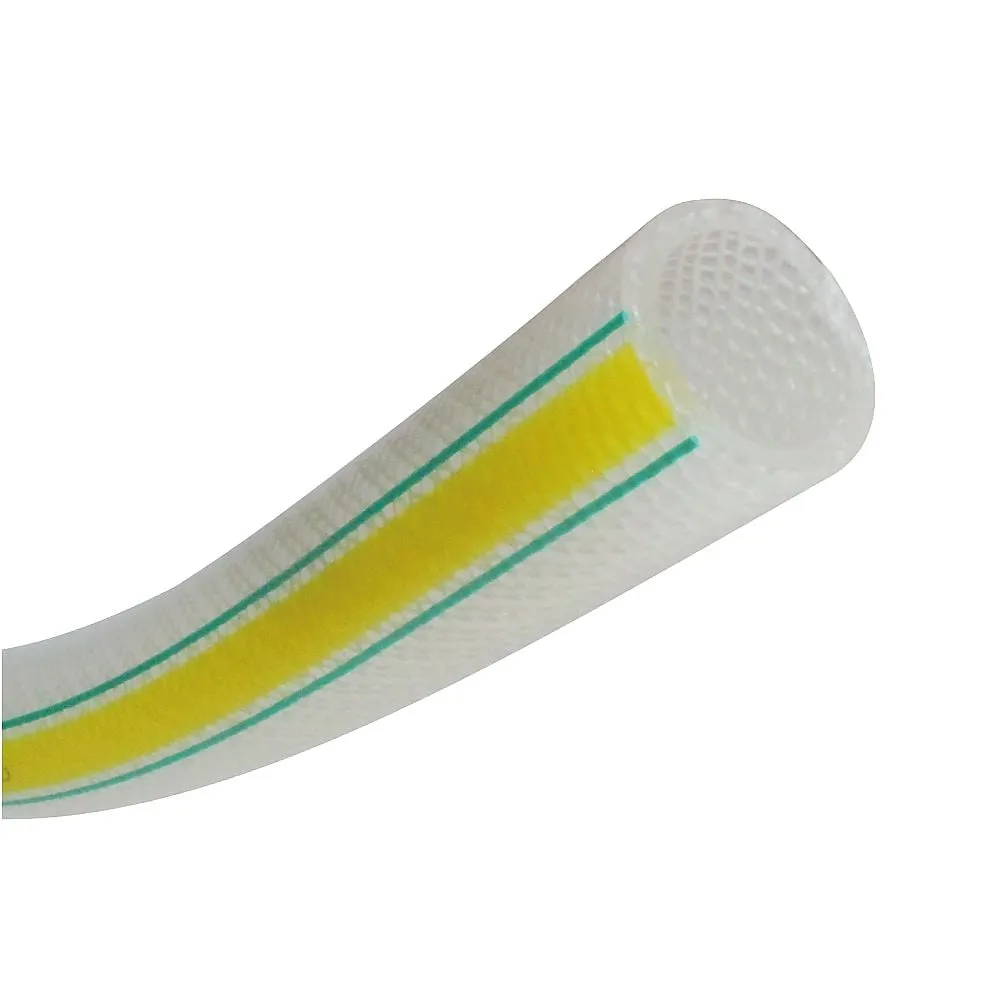

1-2895-01 ECORON HOSE φ6 x φ11.0mm EC-6
model:
1-2895-01
category:
automaticdiluter
Product Description
Product Model: 1-2895-01 Features "Main application": F […]
Contact Us
Product Details
Product Model: 1-2895-01
Features
- "Main application": For transporting food, beverages, oils and fats, chemicals, cosmetics, etc. "Non-PVC": Made of inner tube polyolefin resin, this pressure resistant blade hose has chemical resistance, low elution, low odor and can be ***d for transporting chemicals, chemicals, pure water, cosmetics and food.
- Compliance with Law: Compliance with Food Sanitation Law (the Ministry of Health, Labour and Welfare Notification No. 196)
- Compliance with Standards: Compliance with RoHS2 (as of October 2021)
- * This hose is for indoor *** only.
Spec
- Model number: EC-6
- Material: Main body / polyolefin styrenic Plastic, reinforcing material / polyester yarn
- Operating temperature range:-5 ~ + 60 ° C
- pressure of *** (23 ° C 60 ° C): 0 to 1.0 to 0.5 MPa
- Maximum length: 100 m
- Food sanitation act compliance
- Inner diameter × outer diameter: φ6 × φ 11.0 mm
- minimum b***ing radius: 25 mm
- Sales are 1 meter units. The price is per meter.
- RoHS3 (EU)2015/863 Certificates can be issued
