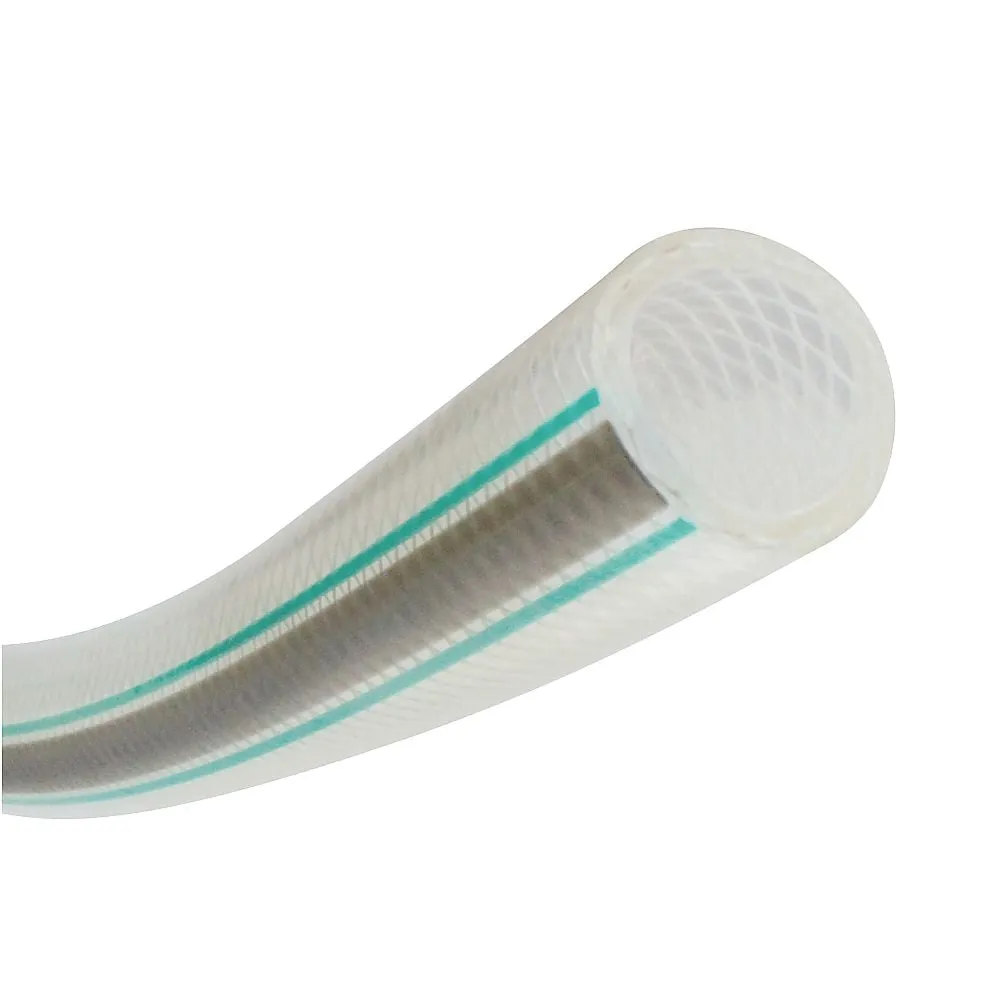

1-2894-08-01 Chemical-Resistant/Solvent/Food Fluorine Hose TOYOFUSSO(R) Inner Diameter 50 mm x Outer Diameter 62 mm Length 1 m FF-50-1
Product Description
Product Model: 1-2894-08-01Product Brand: TOYOX CO., LT […]
Contact Us
Product Details
Product Model: 1-2894-08-01
Product Brand: TOYOX CO., LTD.
Features
- Fluorine hose for transporting chemicals, solvents, cosmetics, oil, food, etc.
- "Tetrafluoride fluororesin": Tetrafluoride fluororesin is ***d inside the hose. Utilizing characteristics such as chemical resistance, non-elution, non-adhesion, and low odor, it can be ***d as a hose for all kinds of equipment piping.
- "Versatile": Can be ***d as a hose for transporting chemicals, chemicals, pure water, cosmetics, food, semiconductors, etc.
- "Coloring and flavoring": The inner surface is non-adhesive and excellent in water repellency, and is difficult to color, and has little effect on smell and taste.
- "Cleanability": Since the inner surface of the hose is non-adhesive and excellent in water repellency, fluid does not remain in the hose and cleaning is easy.
- Pressure bearing blade hose
Spec
- Inner Diameter x Outer Diameter (mm): 50 x 62
- Pressure (MPa): 0~0.4 (23°C), 0~0.2 (80°C)
- Operating temperature range: -20~80°C
- Length: 1 m
- Material: Body/4Fluorinated Fluororesin (Modified ETFE), Reinforcement/Polyester Thread
- Minimum b*** radius: 500 mm
