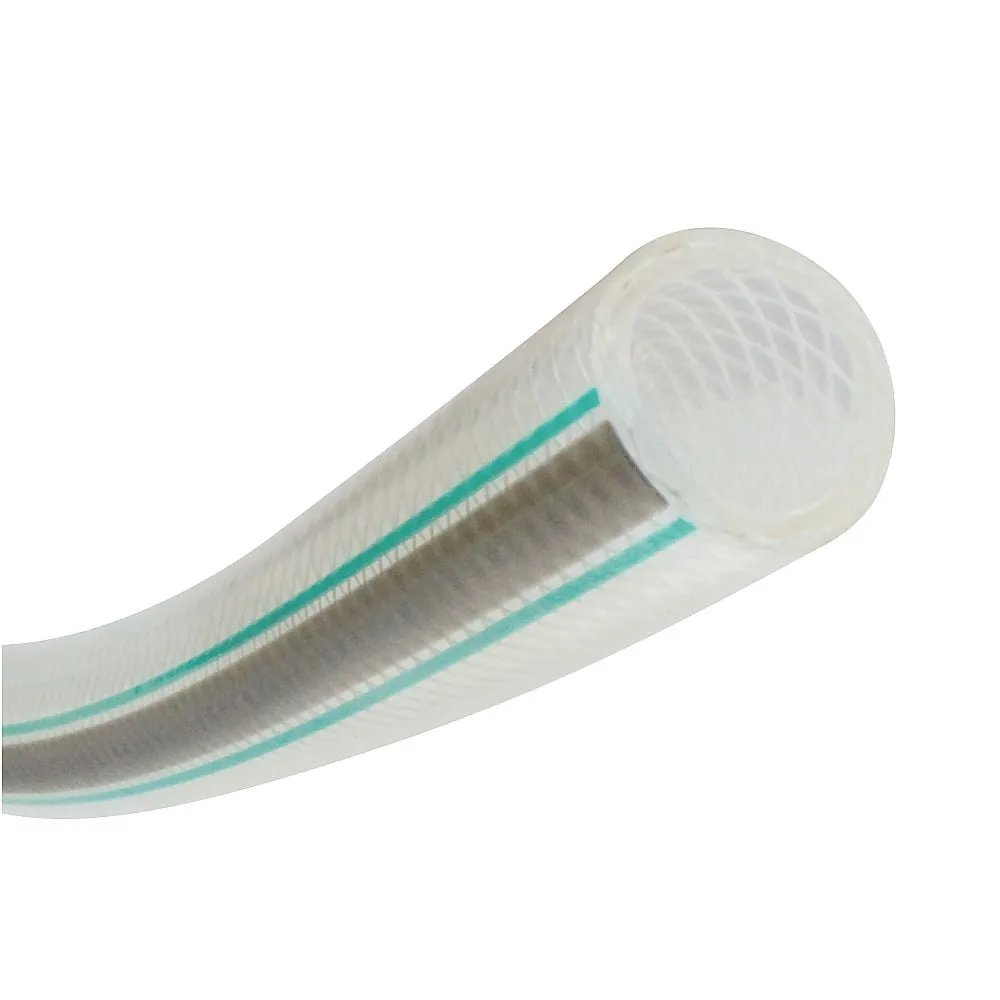

1-2894-04-01 Chemical-Resistant/Solvent/Food Fluorine Hose TOYOFUSSO(R) Inner Diameter 19 mm x Outer Diameter 26 mm Length 1 m FF-19-1
automaticdiluter

1-2894-04-01 Chemical-Resistant/Solvent/Food Fluorine Hose TOYOFUSSO(R) Inner Diameter 19 mm x Outer Diameter 26 mm Length 1 m FF-19-1

model: 1-2894-04-01
brand: TOYOX CO., LTD.
category: automaticdiluter

Product Description

Product Model: 1-2894-04-01Product Brand: TOYOX CO., LT […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 1-2894-04-01
Product Brand: TOYOX CO., LTD.

Features

  • Fluorine hose for transporting chemicals, solvents, cosmetics, oil, food, etc.
  • "Tetrafluoride fluororesin": Tetrafluoride fluororesin is ***d inside the hose. Utilizing characteristics such as chemical resistance, non-elution, non-adhesion, and low odor, it can be ***d as a hose for all kinds of equipment piping.
  • "Versatile": Can be ***d as a hose for transporting chemicals, chemicals, pure water, cosmetics, food, semiconductors, etc.
  • "Coloring and flavoring": The inner surface is non-adhesive and excellent in water repellency, and is difficult to color, and has little effect on smell and taste.
  • "Cleanability": Since the inner surface of the hose is non-adhesive and excellent in water repellency, fluid does not remain in the hose and cleaning is easy.
  • Pressure bearing blade hose

Spec

  • Inner Diameter x Outer Diameter (mm): 19 x 26
  • Pressure (MPa): 0~1.0 (23°C), 0~0.5 (80°C)
  • Operating temperature range: -20~80°C
  • Length: 1 m
  • Material: Body/4Fluorinated Fluororesin (Modified ETFE), Reinforcement/Polyester Thread
  • Minimum b*** radius: 135 mm
