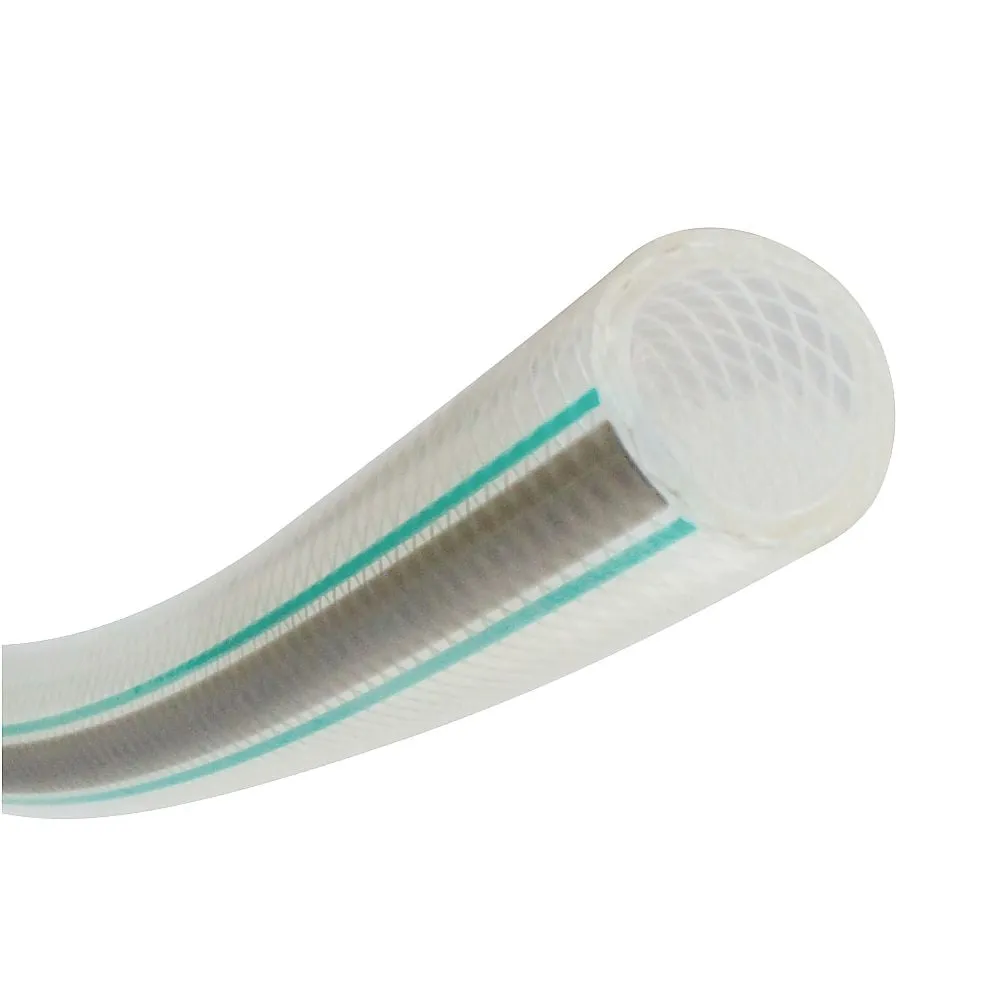

1-2894-01 TOYOFUSSO(R) HOSE φ9 x 15mm FF-9
model:
1-2894-01
category:
automaticdiluter
Product Description
Product Model: 1-2894-01 Features Fluorinated Hose for […]
Contact Us
Product Details
Product Model: 1-2894-01
Features
- Fluorinated Hose for Transporting Chemicals, Solvents, Cosmetics, Oil, Food, etc. "4-Fluorinated Fluororesin": Uses 4-Fluororesin on the inner surface of the hose. Utilizing chemical resistance, non-elution, non-adhesion, and low odor characteristics, it can be ***d as a hose for all types of piping.
- "Versatile": Can be ***d as a transport hose for chemicals, chemicals, pure water, cosmetics, food, semiconductors, etc.
- "Coloring and perfumery": The inner surface is excellent in non-adhesion and water repellency, and is difficult to color, and has little effect on odor transfer and taste.
- Cleanability: Since the inner surface of the hose is excellent in non-adhesion and water repellency, fluid does not remain in the hose and cleaning is easy.
- Pressure Resistant Blade Hose
Spec
- Model number: FF-9-20
- Material: Inner surface (contact part) / modified ETFE (Fluorine Plastic), coating material / PU (polyurethane), soft PVC (polyvinyl chloride), reinforcement / polyester yarn
- Operating temperature range:-5 ~ + 70 ° C
- pressure of *** (23 ° C 70 ° C): 0 to 1.0 to 0.5 MPa
- Phthalate plasticizer free
- Inner diameter × outer diameter: φ9 × φ 15 mm
- Maximum length: 20 m
- minimum b***ing radius: 65 mm
- * Sales are 1 meter units. The price is per meter.
