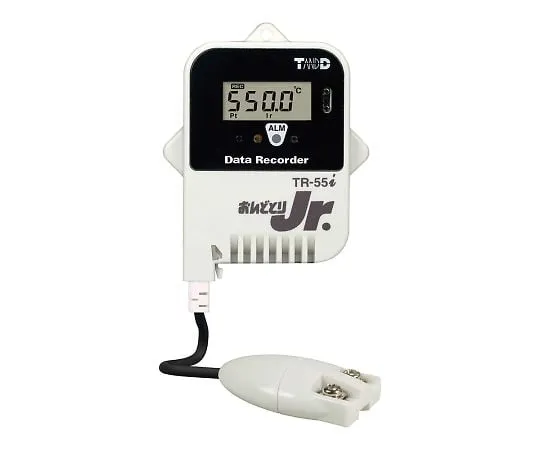

61-8493-86-20 Temperature data logger with pt sensor and calibration certificate TR-55i-pt
Product Description
Product Model: 61-8493-86-20Product Brand: T&D Corp […]
Contact Us
Product Details
Product Model: 61-8493-86-20
Product Brand: T&D Corporation
Features
- Small and battery-powered, it can be installed anywhere.
- The logger body is waterproof and can be ***d in a variety of environments at -40~80 degrees Celsius.
- Recorded data can be transferred to a personal computer via the optional communication port TR-50U2(1-5020-22) or data collector TR-57DCi(1-2322-16-30 * 1) for graph display and data analysis.
Spec
- Measuring range (deg. C): -199 to + 600
- Measuring resolution: 0.1 degrees C
- Data storage capacity: 16000
- Recording interval: 1, 2, 5, 10, 15, 20, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 60 minutes
- Power supply: Lithium battery LS 14250 x 1
- Body dimensions: 62 x 47 x 19 mm
- Body weight: About 45 g
- Dustproof and waterproof: IP 64
- Accessories: Input module, Pt sensor (TR -8120 -3.2 -100 -1 M)
- Calibration points are 2 points: -80 degrees Celsius and 0 degrees Celsius. If you would like additional points, please contact us separately.
- *Calibration at -196 C is also possible. (Separately, 16,000 yen)
