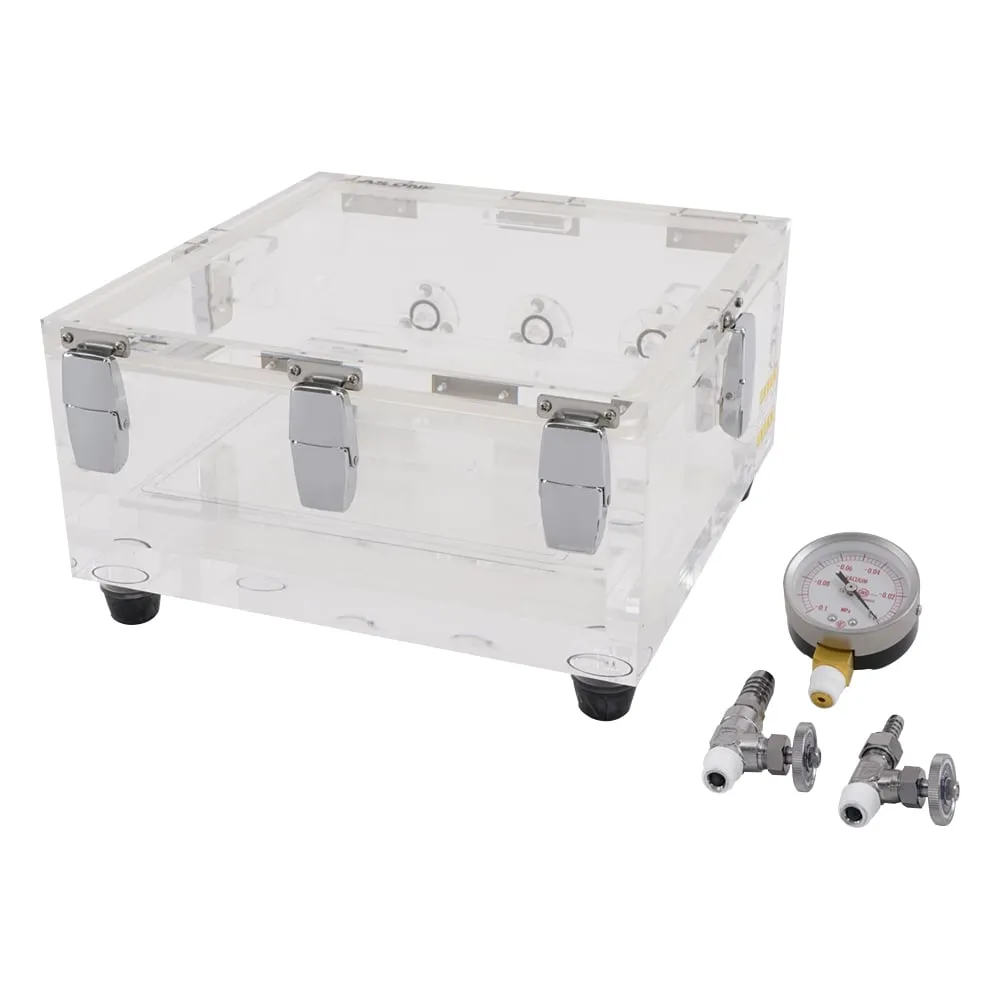

1-070-01-56 Vacuum Desiccator VS Type English Calibration Certificate
Product Description
Product Model: 1-070-01-56Product Brand: AS ONE Corpora […]
Contact Us
Product Details
Product Model: 1-070-01-56
Product Brand: AS ONE Corporation
Features
- Uses highly sealable silicon packing and does not require grease.
- Compact flat size makes it suitable for storage of samples.
- Attached is the calibration certificate (Certificate of calibration, inspection report, traceability system chart) that came with the desiccator and that the vacuum gauge was calibrated at the time of shipment.
Spec
- Material: Body/Clear reinforced PMMA (acrylic resin) (thickness: 20 mm), Valve/Vacuum mounting/PC (polycarbonate)
- Allowable vacuum: 1 Torr (about 133 Pa)
- Capacity: 7L
- Weight: 10 kg
- External dimensions (mm): 300 x 300 x 170 * Excluding projections
- Internal dimensions (mm): 260 x 260 x 100
- No outlet
- Accessories: Calibrated Vacuum Gauge x 1, Silica Gel Dish x 1, Vacuum Valve: Small/Outer Diameter Φ8 mm, Large/Outer Diameter phi 14 mm (1 each)
- Recomm***ed Vacuum Pumps: (1 -4148 -11) Dry Vacuum Pump DTC -22, (1 -671 -06) Dry Vacuum Pump DA -20 D
