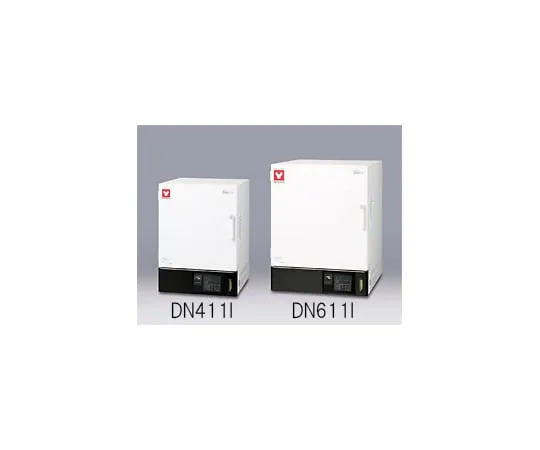

61-9660-22-90 【Global Model】Inert Oven DN411I DN411I

model: 61-9660-22-90
brand: Yamato Scientific Co., Ltd.

Product Description

Product Model: 61-9660-22-90Product Brand: Yamato Scien […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-9660-22-90
Product Brand: Yamato Scientific Co., Ltd.

Features

  • It is a thermostatic device that introduces N2 gas into the tank and enables temperature testing and heat treatment in an oxidation-free atmosphere.
  • Operability/Function
  • Heat resistance testing and heat treatment up to 360°C can be performed easily.
  • The operating temperature range is wide and high precision temperature control is possible.
  • In addition to various operation modes including program operation, various support functions such as calibration offset function, power failure recovery mode selection, ***r setting information storage and ringing function are provided as standard.
  • Program operation of up to 99 steps, 99 patterns and repetition is possible.
  • Equipped with power supply/operation time integration function.
  • You can set the flow rate of nitrogen gas.
  • Safety and maintenance: We have further enhanced safety features such as a self-diagnosis function and a digital setting indep***ent excessive rise prevention device. When the door is opened during operation, the door switch operates to turn off the fan and heater.

Spec

  • Circulation method: Forced air circulation
  • Operating temp. range: RT+15~360℃
  • Temp. adjustment accuracy: ±0.2℃ (at 360℃) JTM K05
  • Temp. fluctuation: 1.2℃(at 360℃) JIS
  • Temp. distribution accuracy: ±3.0℃(at 360℃) JTM K05
  • Temp. gradient: 12℃(at 360℃) JIS
  • Max. temp. reaching time: Approx. 60 min
  • Nitrogen substitution time required: Approx. 30 min. (ordinary temp. with nitrogen concentration of 2%)
  • Internal dimentions(WxDxH): 470 x 450 x 450mm
  • External dimentions(WxDxH): 640 x 695 x 915mm
  • Internal capacity: Approx. 95L
  • No. of steps/pitch: 12 steps/30mm
  • Shelf load capacity : Approx. 30 kg/pc
  • Power supply: AC220V 50/60Hz single phase 15A (plug is not included)
  • Weight: Approx. 90kg
  • Accessories: Stainless shelf x 2, Shelf bracket x 4, Manual
