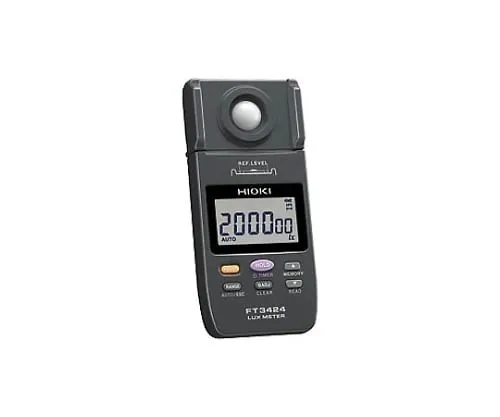

61-4375-10 Illuminometer FT3424
Product Description
Product Model: 61-4375-10Product Brand: HIOKI E. E. COR […]
Contact Us
Product Details
Product Model: 61-4375-10
Product Brand: HIOKI E. E. CORPORATION
Features
- Reliable illuminance measuring instrument JISC1609-1 general model AA class, DIN5032-7classB
- Supports LED lighting measurement
- Wide coverage from low to high illuminance (200,000lx) such as emergency lights and evacuation guidance lights specified in the Fire Protection Law
- Has timer hold function to avoid shadows and reflections and to measure at a distance
- Stores up to 99 data in internal memory and improves work efficiency by PC transfer
Spec
- Size: 78W x 170H x 39Dmm
- Weight: 310g (including battery)
- Basic specification: Accuracy warranty period 2 years, Accuracy warranty period after adjustment 2 years
- Class: JISC1609-1: 2006 general type AA class
- Photo acceptance unit: Silicone photo diode
- Measurement range switching: Auto/manual
- Linearity: +/- 2%rdg. (1.5 times for display value greater than 3000lx)
- Guaranteed accuracy temperature and humidity range: 21℃ - 27℃, 75%rh or less (no condensation)
- Response time: Automatic range: Within 5 seconds, Manual range: Within 2 seconds
- D/A output: Output level: 2V/range f.s. ( 2.5V output when range f.s. is exceeded)
- Output accuracy: +/- 1%rdg. +/- 5mV (compared to display count)
- Function: Timer hold, Memory (maximum 99 pieces), Hold, Auto power OFF, Buzzer sound, Backlight, Zero adjustment
- Compliance Standards: JISC1609-1: 2006 general type AA class, DIN5032-7: 1985classB
- Power supply: AA alkaline dry cell (LR6) x 2, Maximum rated power 500mVA, Continuous *** time: 300h, Or AA manganese dry cell (R6) x 2, USB bus power DC5V
- Accessories: Instruction manual x 1, AA alkaline dry cell (LR6) x 2, Sensor cap (with strap) x 1, Carrying case (soft case) x 1, Strap (for body) x 1, USB cable (0.9m) x 1, CD-R (USB driver, PC application software, Communication specification) x 1
- Measurement range configuration, range measurement range, display step: 20lx 0.00lx - 20.00lx 1 count step, 200lx 0.0lx - 200.0lx, 2000lx 0lx - 2000lx, 20000lx 0 (0) lx - 2000 (0) lx 10 count step, 200000lx 0 (00) lx - 2000 (00) lx 100 count step
- **If you want to *** it for transaction certificates, Choose FT3424 with test that passed examination by Measurement Law or the relevant ministerial ordinance.
- FT3424
