63-4612-01 RS PRO Heat Shrink Tube, Red 2.4mm Sleeve Dia. x 1.2m Length 2:1 Ratio 397-994
Product Description
Product Model: 63-4612-01Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4612-01
Product Brand: RS PRO
Features
- MIL SAE-AMS-DTL 23053/5 Class 1 (excluding clear type) IEC 60684-3-212 A; B, BS3G 198 Part 3 11b, VG 95343 Part 5 A; B
- SAE-AMS-DTL-23053/5 Class 2
- Polyolefin Heat-Shrinkable Tube 2:1
- This flexible heat-shrinkable polyolefin tube is ideal for wiring, harness sleeves, identification coloring, insulation, protection, and coating in the electrical, automotive, and aviation industries.
- Features and benefits: Supports a full range of colors, including new phase colors in accordance with BS7671 Shipping length 1.2 m Very flexible Flame retardant (except clear) High mechanical/electrical strength Corrosion resistance and solvent resistance Diameter size listed is the minimum size for shipping shrinkage
Spec
- Sleeve Diameter:2.4mm
- Shrunk Diameter:1.2mm
- Colour:Red
- Sleeve Type:Heat Shrink
- Adhesive Lined:No
- Shrink Ratio:2:1
- Sleeve Length:1.2m
- Material:Polyolefin
- Flame Retardant:Yes
- Halogen Free:No
- CODE No.:397-994
Related product recommendations
You may also be interested in the following products
63-6581-37 LED Reflector Bulb, Telephone Slide, White, Single Chip, 5.5mm dia., 48V ac/dc 203-739
model: 63-6581-37
brand: RS PRO
63-7333-05 Thermal Interface Sheet, Gap Pad VO, 0.8W/m·K, 200 x 100mm 0.16in, Self-Adhesive GPVO-0.160-AC-00-200X100
model: 63-7333-05
brand: Bergquist

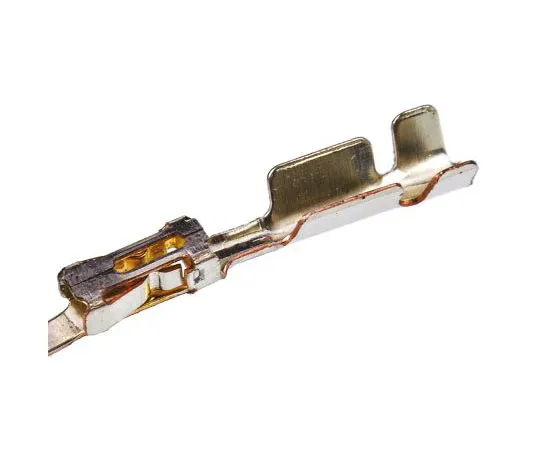

63-4946-83 TE Connectivity Universal MATE-N-LOK Female Crimp Terminal Contact 14AWG 350550-2 350550-2
