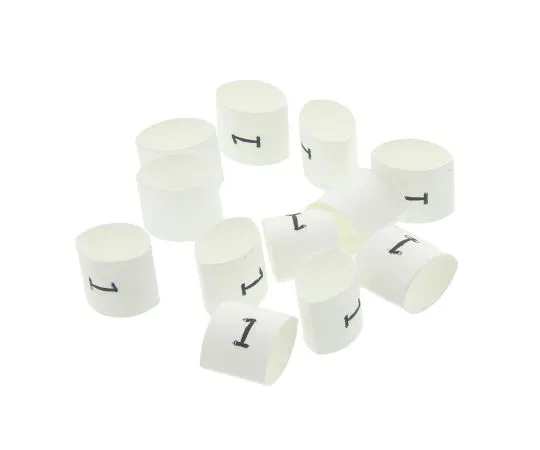

63-4610-54 Cable Marker White TRSA-1019E11
model:
63-4610-54
brand:
TE Connectivity
Product Description
Product Model: 63-4610-54Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4610-54
Product Brand: TE Connectivity
Features
- Heatshrink Pre-Printed Cable Marker
- An irradiated polyolefin heat-shrink cable marker that shrinks to 33% of its original diameter when heated above 120°C.
- The leg*** is printed in black on a white background so it can be clearly identified in low light.
- This cable marker is highly flame retardant (> 5 seconds burn time), compatible with ASTM B876.
- Features and Benefits:; Available in 3 sizes: - Size 3// 1: Nominal inside diameter 3 mm - Size 6// 2: Nominal inside diameter 6 mm - Size 12// 4: Nominal inside diameter 12 mm; Continuous temperature range: -55 to +135°C (maximum +300°C for short periods); Shrinkage ratio: 3:1; Easy and safe installation; Resistance suitable for common fluids
Spec
- Quantity: 1 bag (100 pieces)
- Fixing method: Heat shrink tube
- Leg***: 1
- Minimum cable diameter: 2 mm
- Maximum cable diameter: 6 mm
- Color: White
- Amount: 100
- Material: Polyolefin
- Minimum operating temperature: -55 degrees C
- Operating temperature mAx: + 135 C
- Durable: Flames, fluids
- Operating temperature range: -55 to + 135 degrees C
- RoHS compliance status: Compliance
- Securities Code: 392 -775
