62-2119-46 M Screw Conversion Flange 9131-1516
Product Description
Product Model: 62-2119-46Product Brand: ASAHI SEISAKUSH […]
Contact Us
Product Details
Product Model: 62-2119-46
Product Brand: ASAHI SEISAKUSHO CO., LTD.
Features
- Used for piping connection of refrigerant (negative temperature region) of reaction vessel.
- Suitable for constant temperature tank piping such as Hoover Lauda.
- After connecting, cover the area with insulation to prevent heat radiation.
- Packings, inserts, bolts and nuts are not included.

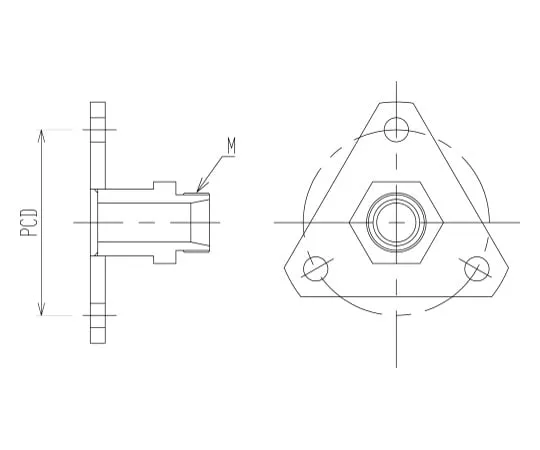

Spec
- Type: SF 15 - M16
- Number of bolt units ***d: M6 x 3
- M:M16
- PCD(φ):50
- material: SUS304
