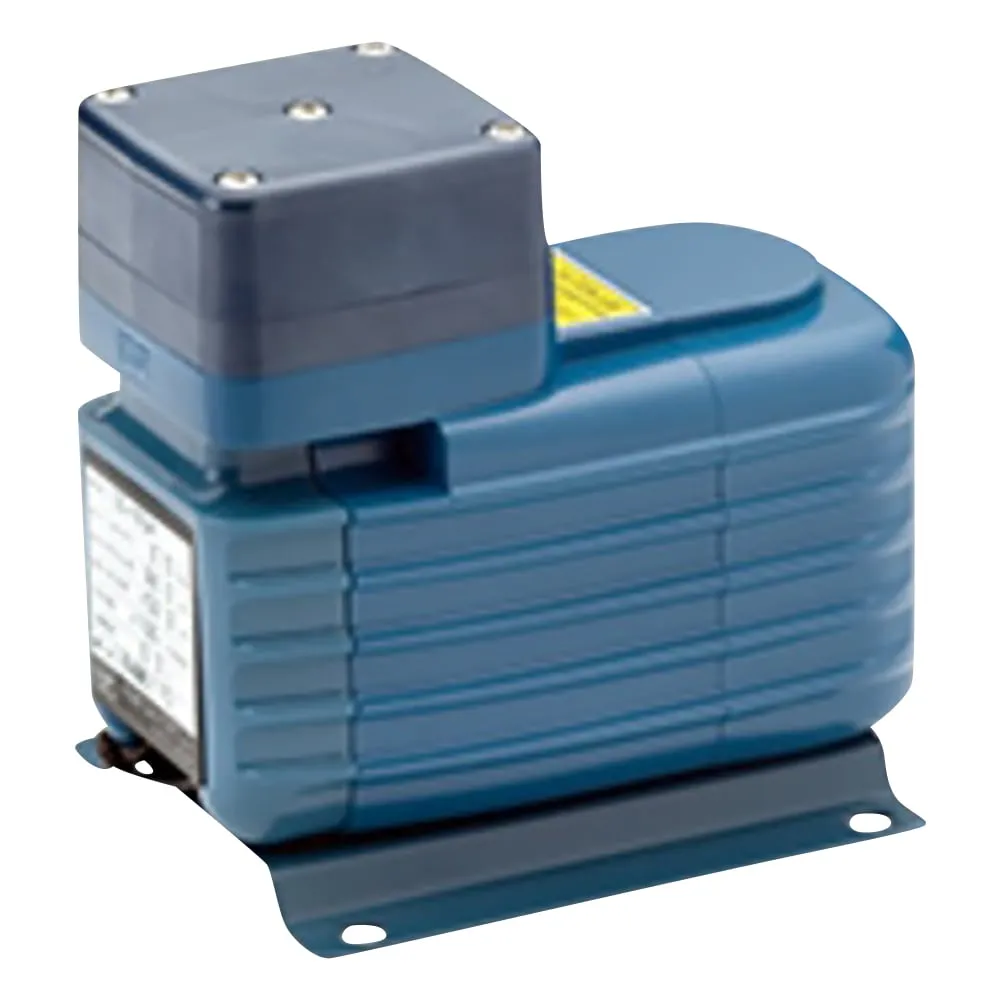

1-5698-11 AC Air Pump Suction-Discharge Convertible Type GS-6EA
Product Description
Product Model: 1-5698-11Product Brand: E.M.P-Japan Feat […]
Contact Us
Product Details
Product Model: 1-5698-11
Product Brand: E.M.P-Japan
Features
- Direct motor type provides clean and accurate air.
- Low noise and vibration make it suitable for various experiments.
Spec
- Model number: GS-6EA
- Insulation Type: Class E
- For both discharge and suction
- RoHS-supported goods
- Maximum discharge flow rate: 6.0L/min or more
- Maximum discharge pressure: 98kPa (1.0kgf/cm2) or more
- Maximum vacuum attainment level: -60kPa (-450mmHg) or less
- Rating voltage: 100VAC 50/60Hz
- Rated current: 0.3A
- Rated rotating speed: 1250rpm/1450rpm (50/60Hz)
- Gas contact unit material: EPDM, PPS
- Connection port size: Rc1/8
- Size: 90 x 120 x 114mm
- Weight: 2.0kg
