63-4586-18 RS PRO Green Indicator, 12 V dc, 8mm Mounting Hole Size, Solder Tab Termination 207-860
Product Description
Product Model: 63-4586-18Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4586-18
Product Brand: RS PRO
Features
- Fixed Nut, Washer
- LED Indicators, 12/24 Vdc, Black Chrome Bezel
- These LED indicators, delivered by the trusted RS Pro, feature a diff*** epoxy lens and chrome bezel.
- The body has a convenient solder lug terminal for quick and easy connection.
- The RS Pro LED indicators are very bright, long-life, and low power consumption, making them suitable for a variety of equipment applications.
- ; 5mm Color Diffusion Epoxy Lens; Length: 37 mm; Estimated life: 100,000 hours; Operating temperature range: -25→+75°C; The three-color type has red and green LEDs, which emit yellow when red and green light up at the same time.; 0.11 inch (2.8 x 0.8) terminal, 3 color type only 2 x 0.5 mm; The gold faston terminal indicates the anode (+) and the silver terminal indicates the cathode (-)
Spec
- Voltage Rating:12V dc
- Light Output Colour:Green
- Mounting Hole Size:8mm
- Lamp Type:LED
- Termination Type:Solder Tab
- Bezel Style:Recessed
- Current Rating:20mA
- Intensity:40mcd
- Length:34.8mm
- CODE No.:207-860
Related product recommendations
You may also be interested in the following products
63-7332-99 Thermal Interface Sheet, Gap Pad VO, 0.8W/m·K, 200 x 100mm 0.04in, Self-Adhesive GPVO-0.040-AC-00-200X100
model: 63-7332-99
brand: Bergquist
63-7511-70 RS PRO Miniature In-Line Plug Connector for *** with Type K Thermocouple Type K, Miniature 370-6701
model: 63-7511-70
brand: RS PRO

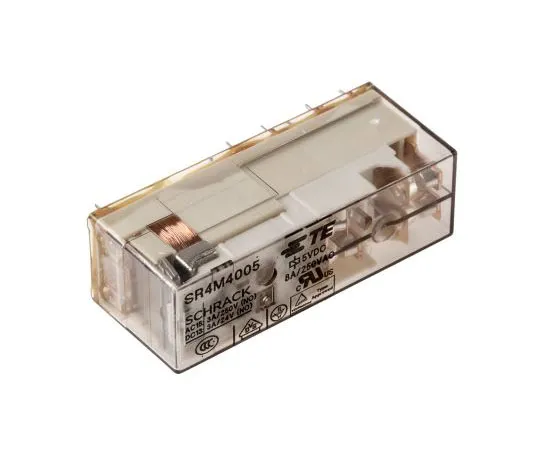

63-7678-79 TE ConnectivitySR4 3PNO, SPNC Non-Latching Relay PCB Mount, 5V dc Coil, 8A SR4M4005
