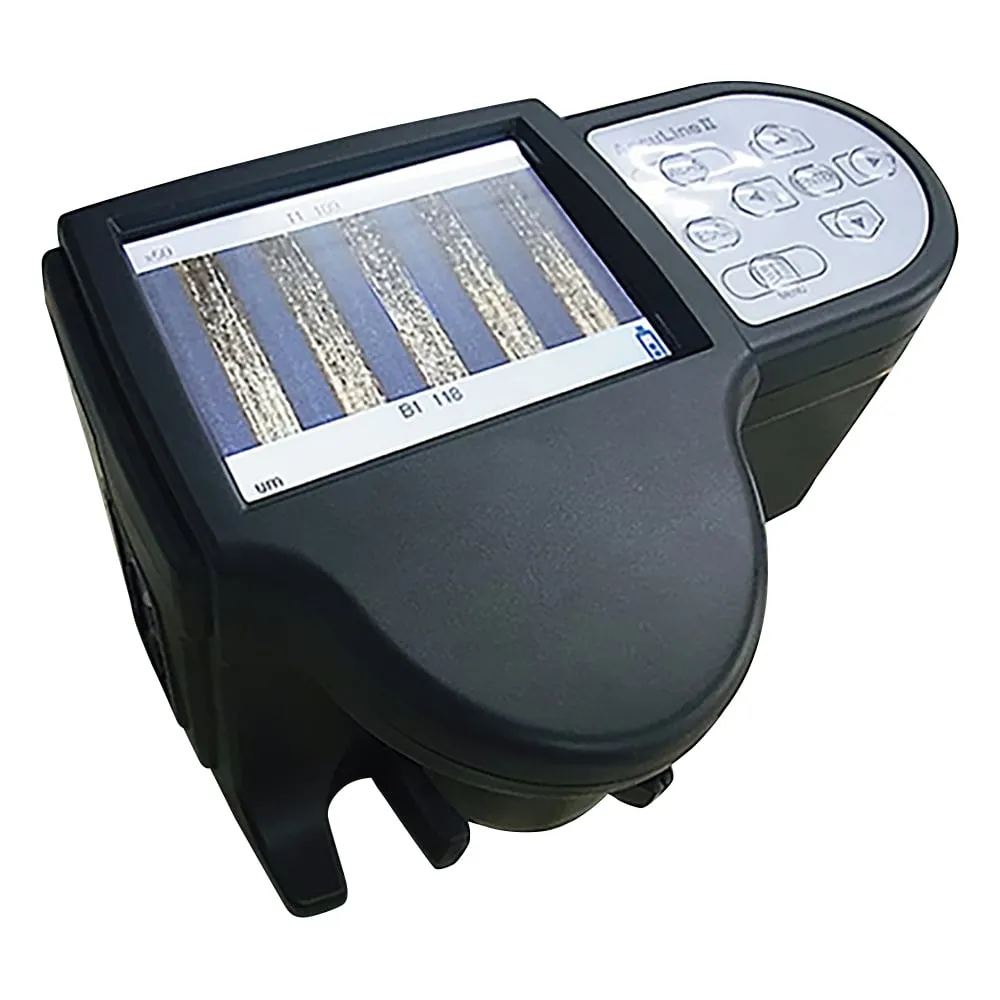

3-8677-01 Digital Line Width Measuring Instrument (Advanced) AccuLineII
Product Description
Product Model: 3-8677-01Product Brand: Ihara Electronic […]
Contact Us
Product Details
Product Model: 3-8677-01
Product Brand: Ihara Electronic Industries
Features
- Conductor width (top/bottom) and insulation interval of printed wiring board can be measured.
- Stand-alone, automatic measurement of conductor width (MAX.900 μm , MIN. 30 μm) is possible.
- Simultaneously measure the bottom and top widths of conductors.
- 3.5 inch color LCD, magnification function allows image confirmation on the device.
- When the reference value and tolerance of conductor width are set, pass/fail judgment is displayed for each measured value obtained by measurement.
Spec
- Size (mm): 160 x 110 x 118
- Weight (g): 470
- Target Size: 1.28 x 0.96mm
- Measured on rigid flexible printed circuit board (Before resist and silk printing)
- Guaranteed operation temperature: 5 to 40 ℃
- Measurement accuracy:. + -. (1 + L/100) μm
- Power supply: Lithium Ion Battery
- Data storage: 200 data (Save to SD card)
- Charge time: about 3 hours (Measurements per charge: about 1,000)
