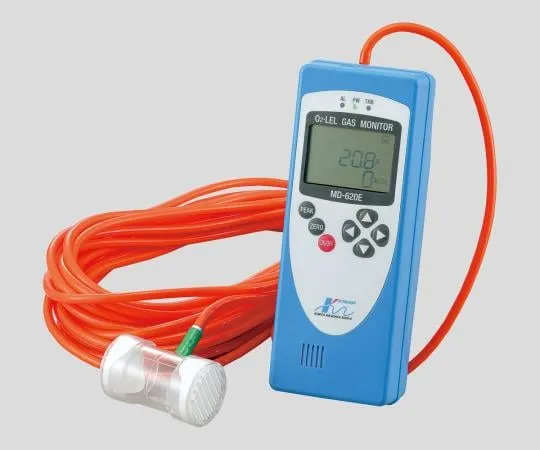

61-9735-69 Complex Type Gas Measuring Instrument MD-620E 12054160
Product Description
Product Model: 61-9735-69Product Brand: KITAGAWA, KOMYO […]
Contact Us
Product Details
Product Model: 61-9735-69
Product Brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
Features
- * Please let us know the address on the certificate.
- A loud alarm (90dB or more/10 cm) signals a gas alarm or trouble.
- The bright LED indicator flashes to indicate that the unit is operating (green), when an alarm is issued (red), or when the unit has failed (orange).
Spec
- Size (mm): 78 x 50 x 200
- Body weight (g): About 550 (including cell)
- Measurement target gas: Oxygen, Atmospheric inflammable gas
- Measurement range: Oxygen/0.0 - 50.0vol, Atmospheric flammable gas/0 - 100%LEL (*%LEL = flammable gas concentration (%)/explosion limit value (%) x 100)
- Alarm accuracy: ±0.5vol% to oxygen/alarm setting value 18.0vol% Atmospheric flammable gas/ ±10%LEL
- Alarm method: LED lamp, LCD display, Buzzer alarm
- Power supply: AA alkaline dry cell (LR6) x 3
- Main unit size: 78 x 50 x 200mm
- Body mass: Approximately 550g (including Cell)
- Standard accessories: Sampling hose with float (5c), Leather Case, Carrying case
- Oxygen, combustible gas
- Model number: MD-620E
