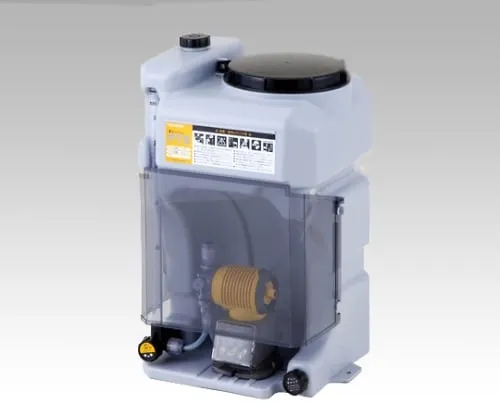

1-2737-01 Solution Filling Unit 30mL/Min PTS-30-PW30-VTCE-HWJ
model:
1-2737-01
category:
laboratoryinstruments
Product Description
Product Model: 1-2737-01 Features It is a large slot wh […]
Contact Us
Product Details
Product Model: 1-2737-01
Features
- It is a large slot where chemical liquid can be easily put in and spilled easily, and it has a sloping structure where the chemical liquid can be accumulated on the top surface.
- When the suction valve is closed to shut off the tank, the level meter can be ***d as a measuring cylinder.
- It has a drain which can remove the remaining liquid from the suction side piping.
- The function of chemical injection is condensed into one unit.
Spec
- Model number: PTS-30-PW30-VTCE-HWJ
- Maximum discharge quantity: 30mL/min
- Maximum discharge pressure: 1.0MPa
- Tank capacity: 30L
- Available liquid range: Viscosity/50mPa・s or less, Temperature/0 - 40℃, Specific gravity/1.3 or less
- Control system: Manual setting, pulse input
- With pump cover, air releasing hose return port, tank fixed unit
- Material: Tank/PE (polyethylene), Pump head, fitting/PVC (vinyl chloride resin), Diaphragm/PTFE (poly tetrafluoroethylene)
- Power supply: AC 100 - 240V, 50/60Hz
- Size: 335 x 390 x 592.5mm
- Weight: 4.8kg
- Valve seat, O-ring material: EPDM
- Accessories: PVC (vinyl chloride resin) blade hose (3m), Siphon stopper check valve, Chemical liquid name seal
