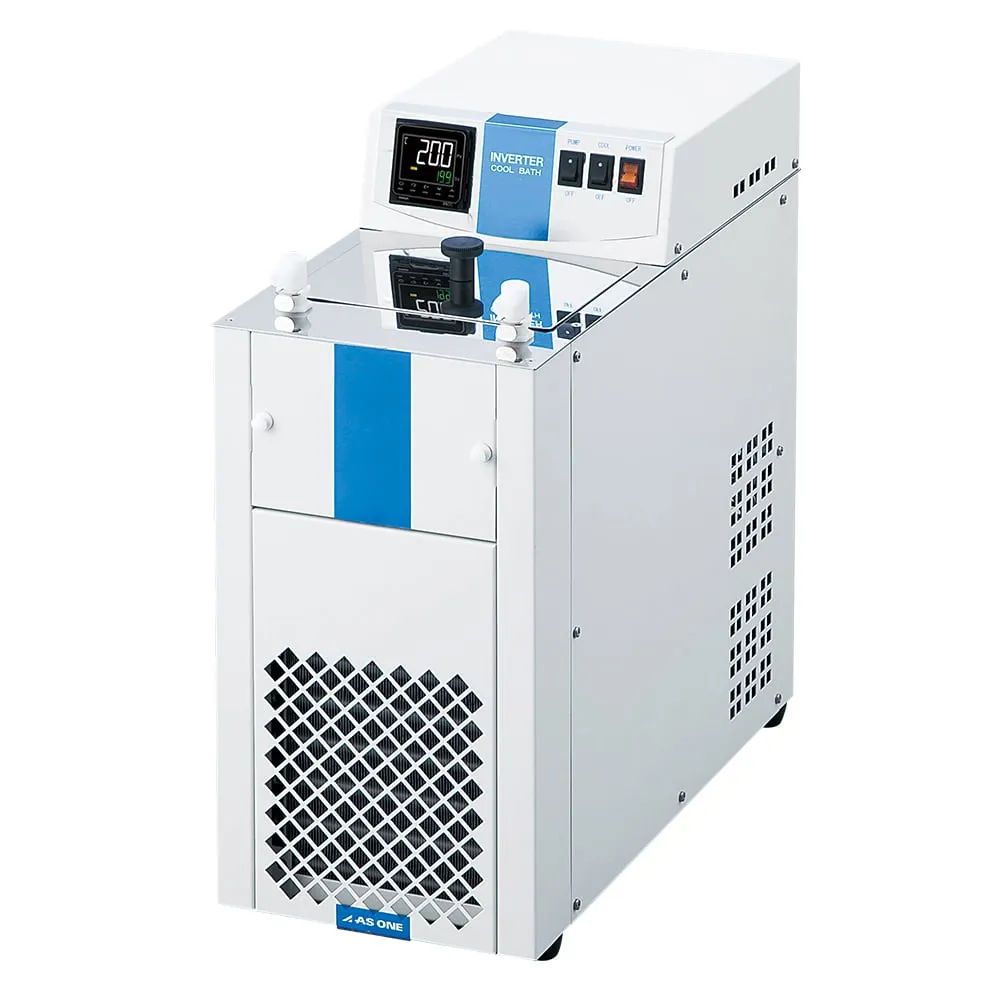

1-230-21-22 Desktop Constant-Low-Temperature Water Circulator with Pre-shipment Inspection Document LTBi-550A
model:
1-230-21-22
category:
laboratoryinstruments
Product Description
Product Model: 1-230-21-22 Features The internal pump a […]
Contact Us
Product Details
Product Model: 1-230-21-22
Features
- The internal pump allows circulation to the external closed system device.
- With a small inverter compressor, energy conservation is realized despite high output.
Spec
- Model Number: LTBi-550A
- Temperature range (deg. C): -20~80
- Temperature accuracy (°C): ±0.05 to ±0.1
- closed system circulating constant temperature tank
- Cooling and heating device: inverter compressor 270 W
- Cooling capacity: 550 W (at 24°C water temperature)
- Coolant: R134a
- Heater Capacity: 500 W
- External circulation: Maximum flow 4 L/min, lift 3.5 m
- Power: 100 VAC 50/60Hz Max 8 A
- Power Cord Length: 1.8 m (3P Plug)
- Circulation Nozzle: Outer Diameter Φ11 mm (Applicable Tube Inner Diameter Φ9 mm)
- Water Tank Dimensions: Approx. 150 x 115 x 150 mm
- External Dimensions: 200 x 430 x 440 mm (Excluding Protrusion)
- Safety device: Float-type dry fire prevention and earth leakage breaker
- Weight: Approx. 25 kg
- Accessories: Hose 1 m (Inner Diameter Φ9mm) x 2
- *Performance values are at room temperature of 25°C, rated current voltage and no load.
- This product can be validated (IQ/OQ). Please contact us.
- *Validation Service is a service where installation qualification (IQ) and operational performance qualification (OQ) are performed at the customer's site and inspection documents are submitted.
