Features

• Description

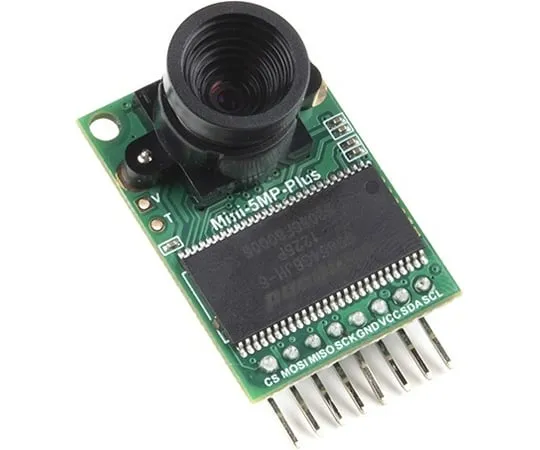

• The Arducam 5MP Plus OV5642 Mini provides an easy to *** camera solution for those working with low-cost microcontrollers such as those ***d with Arduino and the RP2040 from Raspberry Pi. It's a general purpose 5MP camera module that's SPI enabled reducing the complexity of controlling the camera. It's a step up in performance from it's predecessor, the Arducam-M-5MP. The most impressive aspect being that it's possible to control more than one of these from the same microcontroller. It features a M12 mount or CS-Mount lens holder with the ability to change lenses. Best of all, there's code libraries for Arduino, STM32, Chipkit, Raspberry Pi, and BeagleBone Black.
• The Arducam 5MP Plus OV5642 Mini supports JPEG compression mode, single and multiple shoot mode, short movie recording, one-time capture multiple read operation, burst read operation, and low power mode.
• Features
• Power supply 3.3V~5V
• Active array size:2592×1944
• SPI speed:Max 8MHz
• Shutter:rolling shutter
• Frame buffer:8MByte
• Pixel Size:1.4μm×1.4μm
• Default M12 Lens:55°
• Resolution support:5MP, 1080p, 720p, VGA, QVGA
• Format support:RAW, YUV, RGB, JPEG
• Size:34×24 mm
• Weight:20g
• Temperature Range:-10°C~+55°C
• Lens Specification:sensor size:1/4′′; EFL:4.9mm; F/N:2.2; BFL:1.2mm; HFOV:60 degree(SKU:U6067)
