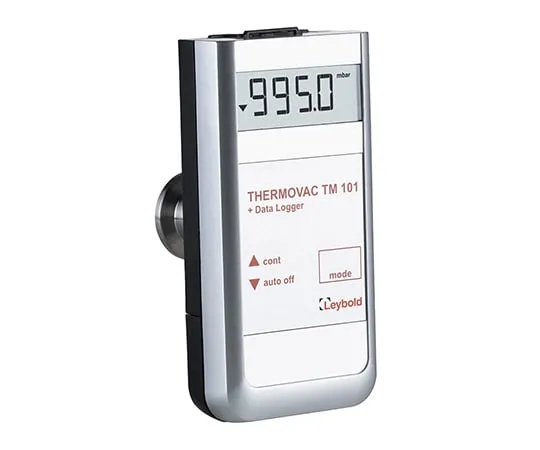

2-624-01 Vacuum Data Logger TM101
model:
2-624-01
category:
toner
Product Description
Product Model: 2-624-01 Features Vacuum meter that can […]
Contact Us
Product Details
Product Model: 2-624-01
Features
- Vacuum meter that can also log under vacuum atmosphere.
- A vacuum data logger that can be directly inserted into a vacuum chamber for measurement.
- Up to 2000 measurement results can be saved using the Memory function.
- Measurement data can be saved to a computer via USB.
- You can measure the high range from atmospheric pressure to high vacuum.
Spec
- Accuracy: 1.2 x 10^5 - 1 x 10^3Pa/0.3% of full scale, 1 x 10^3 - 1 x 10^-1Pa/10% of read value, <2 x 10^-1Pa/read value x 2
- Connection: DN16 ISO-KF
- Size: 60 x 120 x 25mm (excluding flange)
- Weight: 230g
- Power supply: 006P (9V) dry cell (included) or AC adapter (optional)
- PC software correspondence OS: Windows(R)XP/VistaTM/7
- Measurement range (Pa): 5 x 10-^2 - 1.2 x 10^5
- Piezo/Pirani type
- Model number: TM101
