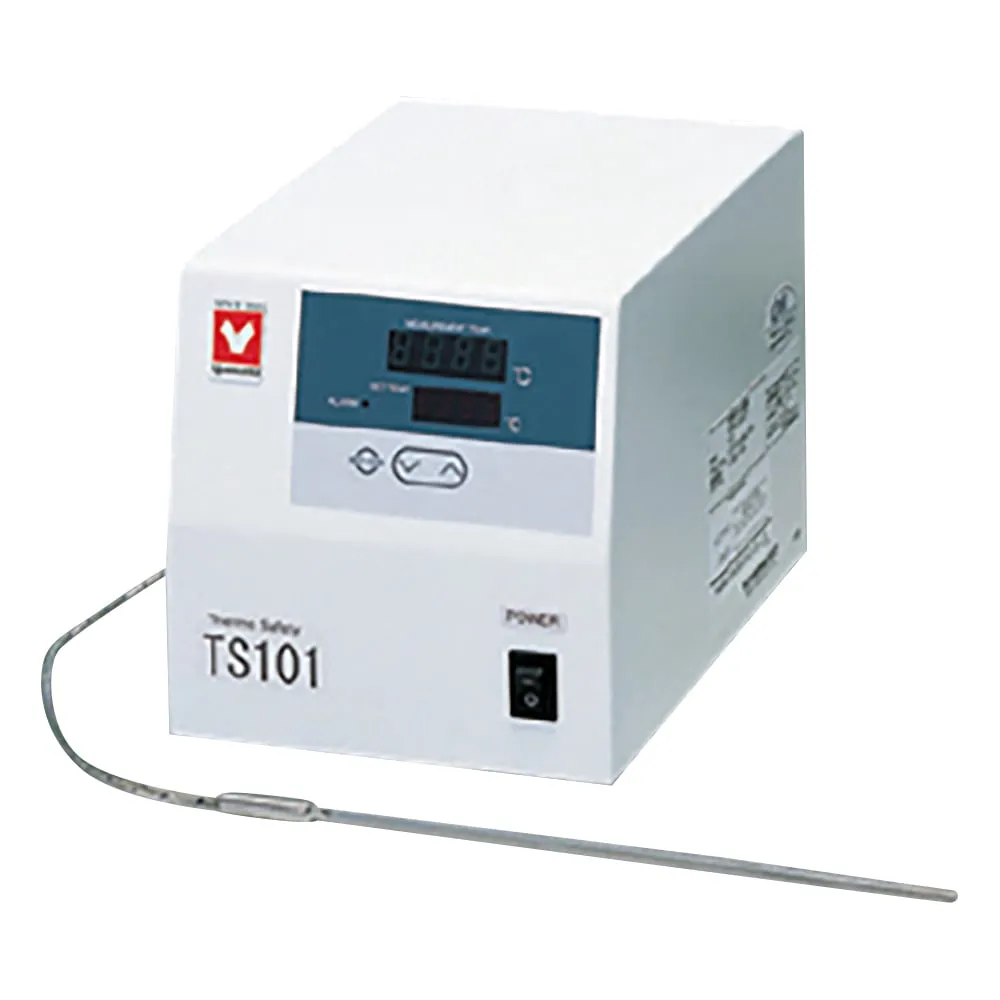

2-1985-01 Overheating Prevention Device TS101
Product Description
Product Model: 2-1985-01Product Brand: Yamato Scientifi […]
Contact Us
Product Details
Product Model: 2-1985-01
Product Brand: Yamato Scientific Co., Ltd.
Features
- Prevents abnormal overheating during operation and securely shuts off the power to the equipment.
- Just by connecting to your thermostat or thermostat water tank, you can prevent abnormal overheating.
- In the unlikely event of an error, an error indication and a buzzer are displayed at the same time as the unit stops.
- Set temperature can be keylocked.
Spec
- Model number: TS101
- Settings range: 0 - 500℃
- Input power: AC100V
- Temperature detection accuracy: +/- 1℃
- Sensor: K class thermocouple
- Sensor size: φ3.2 x 200mm
- Power blocking capacity: AC100V 14.5A
- Temperature display system: Digital display (sensor temperature and settings temperature display)
- Overheating temperature detection operation: Blocking target instrument power, Alarm notification by buzzer, display Er07 and sensor detecting temperature alternately on measuring temperature display
- Alarm output: A contact 250V 3A
- Safety device: Built-in f***, self-diagnosis function (temperature input abnormality, memory abnormality)
- Target instrument connecting system: Power cord connection terminal block for 4P (3P)
- Power supply: AC100V 50/60Hz 0.5A, 3P power plug, without breaker
- Power cord length: Approx 2m
- External dimensions: 150 x 210 x 155mm (excluding projections)
- Weight: Approx 3.5kg
- Accessories: Sheath type K class thermocouple (dip part 200mm), body fixed fittings
