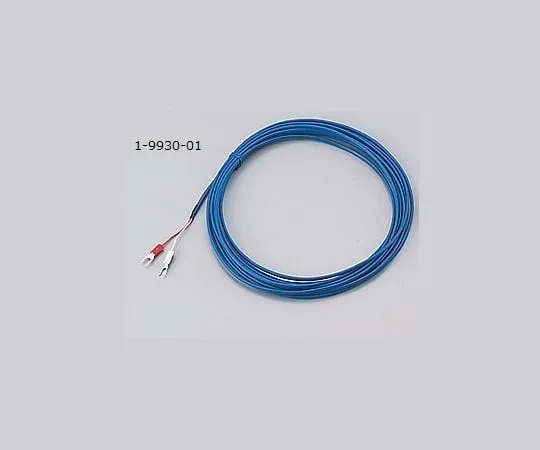

1-9930-01-56 Coated Thermocouple (Duplex) Vinyl-Coated Y-Terminal 5m with English Calibration Certificate DK-K-BL-5m
Product Description
Product Model: 1-9930-01-56Product Brand: Sato Keiryoki […]
Contact Us
Product Details
Product Model: 1-9930-01-56
Product Brand: Sato Keiryoki Mfg. Co., Ltd.
Features
- K Vinyl Coating Type of Thermocouple
- Even if you cut it at the required length, you can *** it right away by connecting the tips together or by welding.
- Can be connected to a terminal block type recorder, indicator, portable thermometer, and data logger. *The sensor is connected to the Y terminal.
Spec
- Coating material: Vinyl
- Specifications: Terminal Crimp Y Terminal
- Y terminal size: outside 6.4 mm x inside 4.3 mm
- Heat-resistant temperature: 90 degrees Celsius
- Wire diameter: 0.32 mm phi
- Lead wire length: 5 m
- Duplex
- *Pay attention to the measurement environment.
- Code: 8970 -22
- Calibration points are 2 points: 23 degrees Celsius and 80 degrees Celsius. If you would like additional points, please contact us separately.
