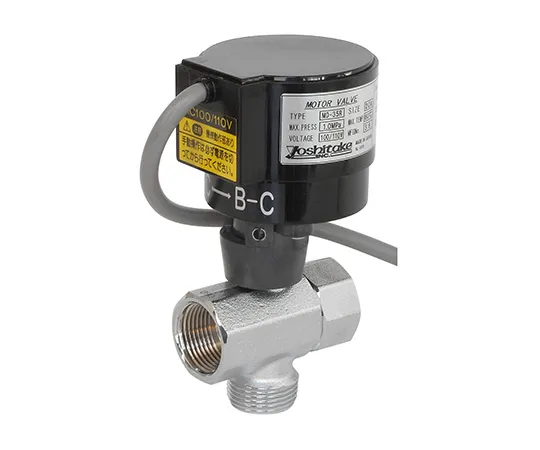

64-3835-67 Small Ball Type Electric 3-Way Valve Body C 3771 Switching MD-35R-15A
Product Description
Product Model: 64-3835-67Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3835-67
Product Brand: Yoshitake Inc.
Features
- Quick and accurate start and stop operation
- Manual operation also possible
- Outdoor rainproof structure (JIS C0920 IP64)
- Control of partial flow mixing of fluid
Spec
- Specifications: Small Ball Type
- Type: motorized valves
- Type: 3 Way Valve
- Nominal Diameter: Listed after the model number
- Fluid: chilled or hot water, air
- Applied Pressure: 0 to 1.0 MPa
- Applicable Temperature: -10 to 80 ° C (nonfreezing)
- rated voltage: AC100/110 V, 50/60 Hz shared or AC200/220 V, 50/60 Hz shared
- Operation method: switching
- open and close time : 7.5/6.3 seconds (50/60 Hz)
- Connection Method: Inlet: JIS Rc Outlet: JIS R
- Body: C 3771
- Valve body: C 3771 (HCr Plating)
- Seat: PTFE (Fluorine Plastic)
