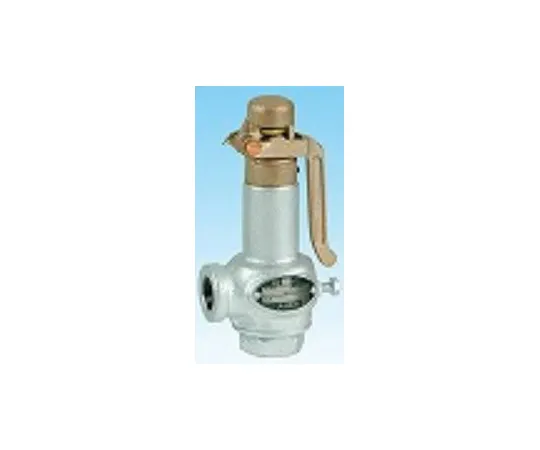

64-3824-38 FCD/CAC lifting height Safety Valve Open Type, Screwed AL-10-15A
Product Description
Product Model: 64-3824-38Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3824-38
Product Brand: Yoshitake Inc.
Features
- Manual blowing inspection is possible at a pressure of 75% or more of the blowing pressure beca*** the lifting lever mechanism is adopted.
Spec
- Specifications: Open/Open Lever Type
- Type: Safety Valves
- Format: lifting height Expression
- Nominal Diameter: Listed after the model number
- Applicable Fluid: steam
- Applicable Pressure Range: 0.05 to 1.0 MPa
- Connection Method: JIS Rc
- Maximum temperature: 220 deg.
- Spring Box: FCD 450
- Valve element and valve seat: CAC
