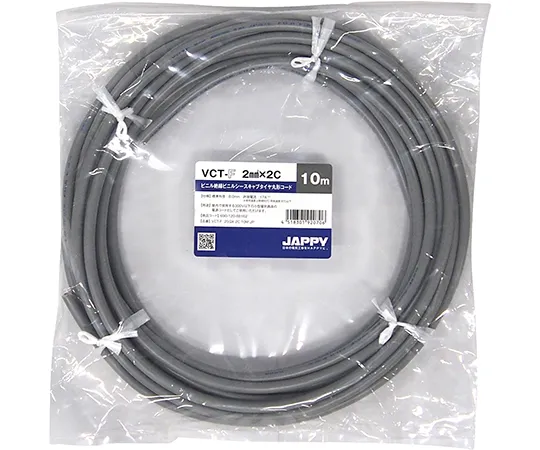

64-6388-30 Cabtyre Round Cord Gray 10 m VCT-F2SQX2C10MJP
Product Description
Product Model: 64-6388-30Product Brand: JAPPY Features […]
Contact Us
Product Details
Product Model: 64-6388-30
Product Brand: JAPPY
Features
- Can be ***d as a power cord for small appliances under 300 V for indoor ***.
Spec
- Conductor configuration: 37 pieces/0.26 mm
- Conductor outer diameter: 1.8 mm
- insulation Normal Thickness: 0.6 mm
- Sheath Normal Thickness: 1.0 mm
- Sheath Color: Gray
- Finished outer diameter: 8.0 mm
- Operating temperature (maximum): 60 degrees C
- Operating temperature (minimum fixed): -25 degrees C
- Operating temperature (minimum travel): -15 degrees C
- Allowable Current: 17 A
- Conductor Resistance: 9.79 ohms/km
- b*** radius: over 48 mm
