63-7694-53 Taiwan Semiconductor GBPC1508 T0, Bridge Rectifier, 15A 800V, 4-Pin GBPC GBPC1508 T0
model:
63-7694-53
brand:
Taiwan Semiconductor
Product Description
Product Model: 63-7694-53Product Brand: Taiwan Semicond […]
Contact Us
Product Details
Product Model: 63-7694-53
Product Brand: Taiwan Semiconductor
Features
- UL E-96005. Bridge Rectifiers with Push-on Terminals, GBPC 15 Series, Taiwan Semiconductor. High Current 15 Amperes Glass passivated chip junction Integrally molded heat-sink provided very low thermal resistance for maximum heat dissipation Isolated voltage from case to lead over 2500V Fast-on Terminals
Spec
- Quantity:1set(100pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 15A
- Peak Reverse Repetitive Voltage : 800V
- Mounting Type : Screw Mount
- Package Type : GBPC
- Pin Count : 4
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 300A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -50 °C
- Peak Forward Voltage : 1.1V
- Peak Reverse Current : 5µA
- Length : 29mm
- Height : 11.23mm
- CODE No.:169-9151
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-3153-07 25 Pole x 2 Row Coupling Pin Socket 2131-2*25SDE20
model: 63-3153-07
brand: Linkman
Electronic/Electrical Parts and Controll Equipments
63-7506-10 TE Connectivity PCB Terminal Block, 8 Way/Pole, Screw Down Terminals, 30 → 12 AWG Cable Mount, Nylon, 300 V ac 796634-8
model: 63-7506-10
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments

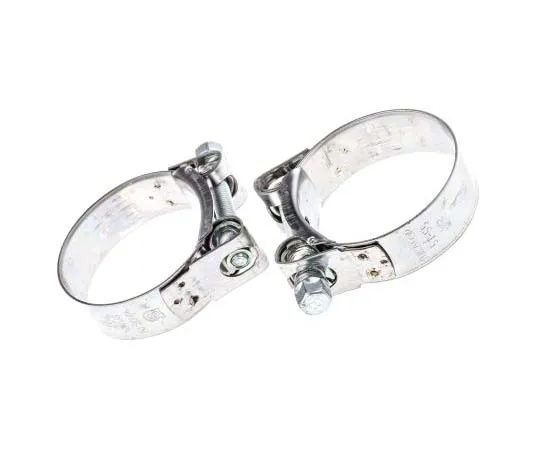

63-7712-50 MIKALOR Stainless Steel, Zinc-Plated Steel (Bolt) Bolt Drive, 20mm Band Width, 51mm - 55mm Inside Diameter M0301914-3
model: 63-7712-50
brand: MIKALOR
Electronic/Electrical Parts and Controll Equipments

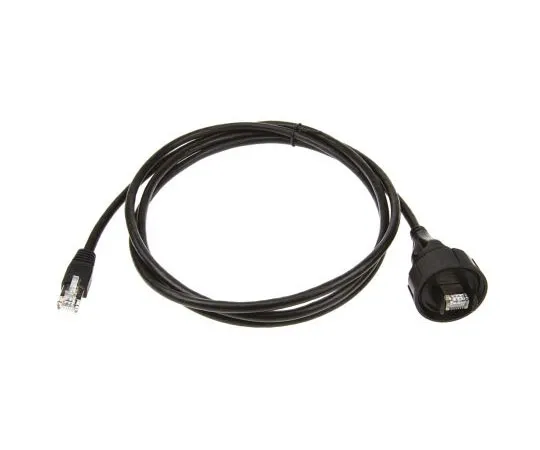

63-7565-63 Bulgin Black PUR Cat5e Cable S/FTP, 2m Male RJ45/Male RJ45 PX0837/2M00
