63-7671-88 Recom Switching Regulator, 4.75 → 18V dc Input, 3.3V dc Output, 1.5A R-78B3.3-1.5
Product Description
Product Model: 63-7671-88Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7671-88
Product Brand: Recom
Features
- EN-55022, EN-55024, EN-60601-1-2, EN-60950-1. De-rate above 71°C operating temperature. MTBF to MIL-HDBK 217F. R-78Bxx-1.5 Series. Non isolated Medical safety approval EN-60601-1-2 No need for heat sinks High efficiency Wide input voltage range, up to 18V Thermal shutdown and continuous short circuit protection Low ripple and noise Low profile Pin-out compatible with LM78XX Linear regulators SIP3 package
Spec
- Quantity:1set(42pieces)
- Input Voltage : 4.75 → 18V dc
- Output Voltage : 3.3V dc
- Number of Outputs : 1
- Output Current : 1.5A
- Power Rating : 4.95W
- Mounting Type : Through Hole
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Efficiency : 91%
- MTBF : 3250000h
- Load Regulation : 0.4%
- Line Regulation : 0.2%
- Ripple And Noise : 15mV Pk-Pk
- Width : 8.5mm
- CODE No.:166-8998
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-3148-14 Banana Plug Mounting Bracket for Terminal Block M3 TJ-3B-3
model: 63-3148-14
brand: SATO PARTS CO., LTD.
Electronic/Electrical Parts and Controll Equipments
63-6950-63 RS PRO Orange Indicator, 12 V dc, 12mm Mounting Hole Size, Faston, Solder Lug Termination, IP67 124-6422
model: 63-6950-63
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-5117-54 Phoenix Contact FBS 20-5 BU Series 20-Pole Jumper Bar 3036929
model: 63-5117-54
brand: Phoenix Contact
Electronic/Electrical Parts and Controll Equipments

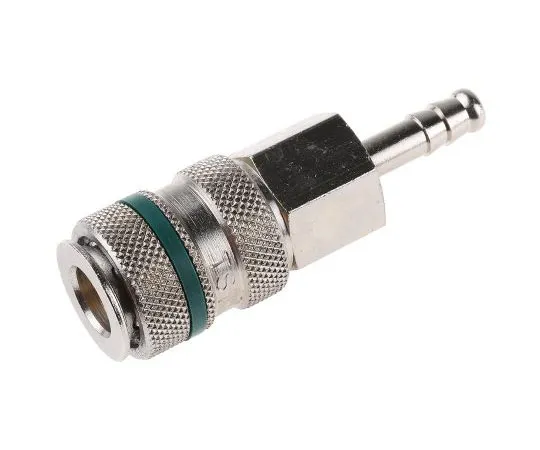

63-7662-13 RS PRO Pneumatic Quick Connect Coupling Brass 6mm Hose Barb 667-1677
